082H5003

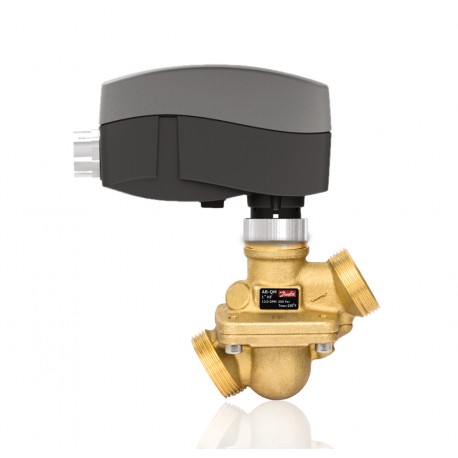

082H5003 DANFOSS HEATING AMI 120 NL 1
$0.00USD
3434 in stock
Key Specifications
EAN ():5710104094274
Type ():AMI 120-1
Volume ():0.944 Liter
Net weight ():0.338 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104094274 |
| Type () | AMI 120-1 |
| Volume () | 0.944 Liter |
| Net weight () | 0.338 Kilogram |
| Description () | AMI 120-1, 24 V, 5 mm, UL certified actuator for two point control for AB-QM DN 10-32 |
| Stroke [mm] () | 5 mm |
| Gross weight () | 0.365 Kilogram |
| Product group () | Gear actuators |
| Cable included () | No |
| SCIP dossier no. () | 51f88729-7b35-441f-a536-af09916549d7 |
| Approval standard () | UL 60730 |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Control signal type () | On/Off |
| IP protection class () | IP42 |
| Spindle speed [s/mm] () | 12 s/mm |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] AC () | 24 V |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AMI/AMV/AME 11-140 (1) |
| Compatibility with AB-QM size () | ½-1¼” |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
AMI 120-1, Supply voltage [V] AC: 24, 5.00 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AMI 120-1, 24 V, 5 mm, UL certified actuator for two point control for AB-QM DN 10-32
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
