082H3041

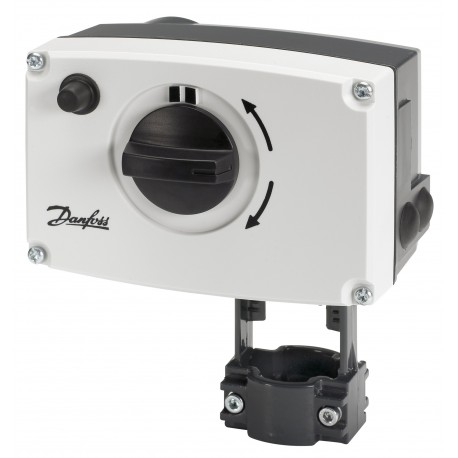

082H3041 DANFOSS HEATING AME 25 SU 24V 15s/mm 15mm 450N
$0.00USD
3323 in stock
Key Specifications
EAN ():5702421523568
Type ():AME 25
Volume ():4.928 Liter
Spring up ():Yes
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421523568 |
| Type () | AME 25 |
| Volume () | 4.928 Liter |
| Spring up () | Yes |
| Net weight () | 2.21 Kilogram |
| Speed type () | Standard |
| Application () | HVAC |
| Description () | AME 25 SU 24V 15s/mm 15mm 450N |
| Stroke [mm] () | 15 mm |
| Gross weight () | 2.256 Kilogram |
| Actuator type () | Electrical |
| Product group () | Gear actuators |
| Safety function () | Yes |
| Manual operation () | Yes |
| SCIP dossier no. () | 1ca58089-c04d-4ca4-802c-c9ba1189bbd9 |
| Closing force [N] () | 450 N |
| Position feedback () | yes |
| EU RoHS compliance () | Yes with exemptions |
| Grade of enclosure () | IP54 |
| UK RoHS compliance () | Out of scope |
| Control signal type () | Modulating/3-point |
| Spring down (return) () | No |
| Actuator speed [s/mm] () | 11 s/mm |
| China RoHS compliance () | Out of scope |
| Power consumption [W] () | 14 W |
| Supply voltage [V] AC () | 24 V |
| Turn time per 90° [s] () | 0 " |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AMV(E) 25 SU/SD |
| Control input signal Y [V] () | 0(2) - 10 V |
| Control input signal Y [mA] () | 0(4) - 20 mA |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | 0 °C |
| Protection Class of the Coating () | II |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] () | 70 °C |
| Storage temperature [°C] [Min] () | -40 °C |
| In scope of WEEE and contain batteries () | No |
| Control input signal Y [V], impedance [kOhm] () | 24 kOhm |
| Control input signal Y [mA], impedance [Ohm] () | 500 |
Product Description
AME 25, Supply voltage [V] AC: 24, 15.00 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AME 25 SU 24V 15s/mm 15mm 450N
