082H0239

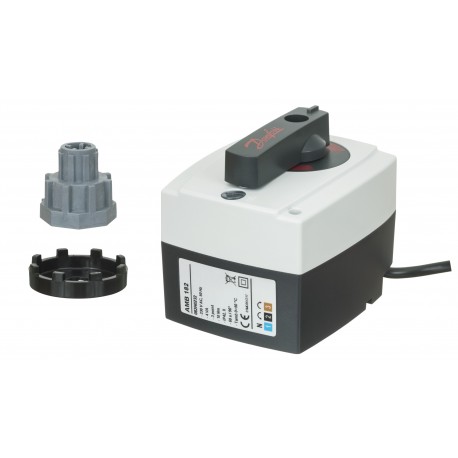

082H0239 DANFOSS HEATING AMB 182 15Nm 3p 60s 230V AS
$0.00USD
3756 in stock
Key Specifications
EAN ():5710104078083
Type ():AMB 182
Volume ():2.016 Liter
Spring up ():No
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104078083 |
| Type () | AMB 182 |
| Volume () | 2.016 Liter |
| Spring up () | No |
| Net weight () | 0.788 Kilogram |
| Speed type () | Standard |
| Application () | temperature control in central heating |
| Description () | AMB 182 15Nm 3p 60s 230V AS |
| Gross weight () | 0.749 Kilogram |
| Actuator type () | Electrical |
| Product group () | Gear actuators |
| Frequency [Hz] () | 50/60 |
| Safety function () | No |
| Manual operation () | Yes |
| Grade of enclosure () | IP42 |
| UK RoHS compliance () | Out of scope |
| Control signal type () | 3-point |
| Rotation angle [°] () | 90 ° |
| Spring down (return) () | No |
| Actuator speed [s/°] () | 60 s/° |
| China RoHS compliance () | Out of scope |
| Operating torque [Nm] () | 15 N-m |
| Power consumption [W] () | 4 W |
| Supply voltage [V] AC () | 230 V |
| Ambient temperature [°C] [max] () | 50 °C |
| Ambient temperature [°C] [min] () | 0 °C |
| Protection Class of the Coating () | II |
| REACH Candidate List substances () | No |
| Storage temperature [°C] [Max] () | 80 °C |
| Storage temperature [°C] [Min] () | -10 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
AMB 182, Supply voltage [V] AC: 230
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AMB 182 15Nm 3p 60s 230V AS
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
