082G7404

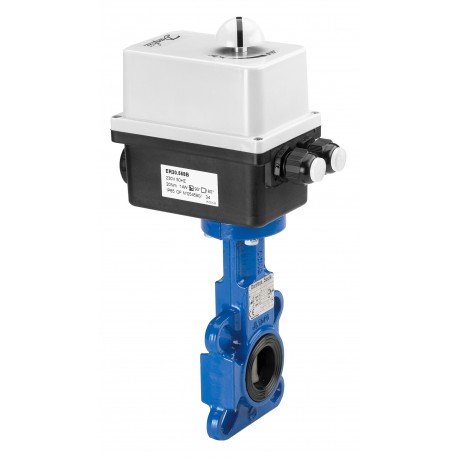

082G7404 DANFOSS HEATING VFY-WA PN16 DN125 CI/SS/EPDM 230V
$0.00USD
4242 in stock
Key Specifications
EAN ():5710104065632
Type ():VFY-WA
Volume ():51.051 Liter
Approval ():CE
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104065632 |
| Type () | VFY-WA |
| Volume () | 51.051 Liter |
| Approval () | CE |
| Function () | On/off |
| Net weight () | 10.29 Kilogram |
| Valve size () | DN 125 |
| Valve type () | Concentric Design |
| Application () | Heating and cooling |
| Description () | VFY-WA PN16 DN125 CI/SS/EPDM 230V |
| Length [mm] () | 56 mm |
| CE evaluated () | Yes |
| Gross weight () | 10.29 Kilogram |
| Body material () | Cast iron EN GJL 250 (DIN GG25) |
| Diameter [mm] () | 125 mm |
| Label product () | Yes |
| Product group () | Butterfly valves |
| Frequency [Hz] () | 50/60 |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Operation type () | Electric actuator |
| Pressure class () | PN 16 |
| Number of ports () | 2 |
| Safety function () | No |
| Connection types () | Wafer |
| Flanges material () | Cast iron EN GJL 250 (DIN GG25) |
| Gear flange type () | F07 |
| Approval standard () | PED 97/23/CE, EN 12266-1, Rate A |
| Permissible media () | District heating/cooling circulation water |
| Position feedback () | no |
| EU RoHS compliance () | Out of scope |
| Grade of enclosure () | IP66 |
| Kvs values [m³/h] () | 883 m³/h |
| Medium alternative () | Glycolic water up to 50% |
| UK RoHS compliance () | Out of scope |
| Diameter [mm] [Max] () | 125 mm |
| Rotation angle [°] () | 90 ° |
| Valve body material () | Cast iron EN GJL 250 (DIN GG25) |
| Valve disc material () | Stainless Steel |
| Valve stem material () | Stainless steel AISI 420 |
| Leakage rate [% Kvs] () | Leakage rate A |
| Medium alternative 2 () | Circulation water |
| Mounting orientation () | except cap down |
| Valve liner material () | EPDM |
| China RoHS compliance () | Out of scope |
| Operating torque [Nm] () | 100 N-m |
| Power consumption [W] () | 15 W |
| Stem sealing material () | Nitrile/Viton/Zinc coated S. + PTFE |
| Supply voltage [V] AC () | 230 V |
| Pressure nominal [bar] () | 16 bar |
| Media temperature [°C] [Max] () | 130 °C |
| Media temperature [°C] [Min] () | -10 °C |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | -10 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Min] () | -10 °C |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 16 bar |
Product Description
Butterfly valves, VFY-WA, Electric actuator, Supply voltage [V] AC: 230, Wafer
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VFY-WA PN16 DN125 CI/SS/EPDM 230V
