082G7388

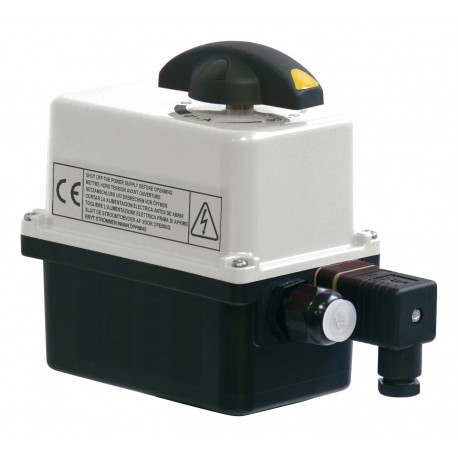

082G7388 DANFOSS HEATING AMB-Y ER20 24V 20Nm DN25-65
$0.00USD
4900 in stock
Key Specifications
EAN ():5702421536988
Type ():Electric actuator AMB-Y
Volume ():4.914 Liter
Function ():On/off
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421536988 |
| Type () | Electric actuator AMB-Y |
| Volume () | 4.914 Liter |
| Function () | On/off |
| Net weight () | 0.8 Kilogram |
| Application () | Heating and cooling |
| Description () | AMB-Y ER20 24V 20Nm DN25-65 |
| Gross weight () | 1.196 Kilogram |
| Actuator type () | ER20 |
| Label product () | Yes |
| Product group () | Butterfly valves accessories |
| Frequency [Hz] () | 50/60 |
| Operation type () | electrical / manual |
| Safety function () | No |
| Connection types () | Gear Flange |
| Gear flange type () | F03-F04-F05 |
| Approval standard () | EMC Directive 2004/108/EC: EN61010-1EN61000-3-2, EN61000-3-3, EN61000-6-4, EN61000-6-2 |
| Position feedback () | on request |
| Grade of enclosure () | IP66 |
| Position indicator () | Yes |
| UK RoHS compliance () | Out of scope |
| Rotation angle [°] () | 90 ° |
| Mounting orientation () | except cap down |
| China RoHS compliance () | Out of scope |
| Operating torque [Nm] () | 20 N-m |
| Power consumption [W] () | 15 W |
| Supply voltage [V] AC () | 24 V |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | -10 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] () | 55 °C |
| Storage temperature [°C] [Min] () | -10 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Electric actuator AMB-Y, ER20, Supply voltage [V] AC: 24, 20 N-m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AMB-Y ER20 24V 20Nm DN25-65
