082G5411

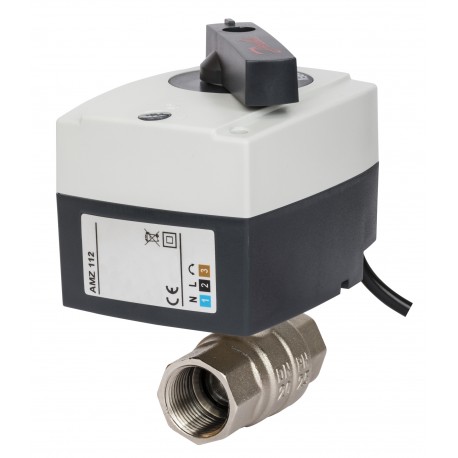

082G5411 DANFOSS HEATING AMZ 112 ON/OFF 2-w int th 230V DN50
$0.00USD
3999 in stock
Key Specifications
EAN ():5710104079929
Type ():AMZ 112
Volume ():3.857 Liter
Net weight ():2.766 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104079929 |
| Type () | AMZ 112 |
| Volume () | 3.857 Liter |
| Net weight () | 2.766 Kilogram |
| Valve size () | DN 50 |
| Application () | Domestic and commercial central heating |
| Description () | AMZ 112 ON/OFF 2-w int th 230V DN50 |
| Gross weight () | 2.831 Kilogram |
| Diameter [mm] () | 50 mm |
| Product group () | Motorized control valves |
| Connection size () | Rp 2 |
| Number of ports () | 2 |
| Connection types () | Internal thread |
| Mounting version () | Free |
| SCIP dossier no. () | 9fa32728-1915-421d-86bc-7b5cdc83b5fe |
| Spindle position () | None |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 243 m³/h |
| Medium alternative () | Circulation water |
| UK RoHS compliance () | Out of scope |
| Valve ball material () | CW 614 N UNI EN 12164 |
| Valve body material () | CW 617 N UNI EN 12165 |
| Valve stem material () | CW 614 N UNI EN 12164 |
| Medium alternative 2 () | Glycolic water up to 50% |
| China RoHS compliance () | Out of scope |
| Operating torque [Nm] () | 10 N-m |
| Pressure nominal [bar] () | 25 bar |
| SCIP dossier product name () | 082G5411 |
| Application alternative VSP () | Solar energy plants |
| Media temperature [°C] [Max] () | 110 °C |
| Media temperature [°C] [Min] () | 2 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Closing differential pressure (mixing) [bar] [Max] () | 6 bar |
| Closing differential pressure (diverting) [bar] [Max] () | 6 bar |
Product Description
AMZ 112, 243.00 m³/h, Rp 2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AMZ 112 ON/OFF 2-w int th 230V DN50
