In Stock Hot Product
082G3090

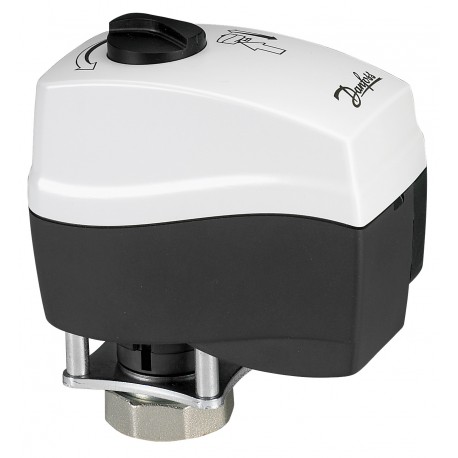

082G3090 DANFOSS HEATING AMV 150 230V 24s/mm 5mm 250N
$0.00USD
4580 in stock
Key Specifications
EAN ():5702421551745
Type ():AMV 150
Volume ():0.978 Liter
Spring up ():No
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421551745 |
| Type () | AMV 150 |
| Volume () | 0.978 Liter |
| Spring up () | No |
| Net weight () | 0.394 Kilogram |
| Speed type () | Standard |
| Application () | District Heating and zone |
| Description () | AMV 150 230V 24s/mm 5mm 250N |
| Stroke [mm] () | 5 mm |
| Gross weight () | 0.4 Kilogram |
| Actuator type () | Electrical |
| Product group () | Electrical actuators |
| Frequency [Hz] () | 50/60 |
| Safety function () | No |
| Manual operation () | Yes |
| SCIP dossier no. () | 5941c580-cf9b-456d-b3c6-52adde56771d |
| Closing force [N] () | 250 N |
| Position feedback () | no - potentiometer needed |
| EU RoHS compliance () | Yes with exemptions |
| Grade of enclosure () | IP54 |
| UK RoHS compliance () | Out of scope |
| Control signal type () | 3-point |
| Spring down (return) () | No |
| Actuator speed [s/mm] () | 24 s/mm |
| China RoHS compliance () | Out of scope |
| Power consumption [W] () | 8 W |
| Supply voltage [V] AC () | 230 V |
| Turn time per 90° [s] () | 0 " |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AMV (E) 130 - 150 |
| Media temperature [°C] [Max] () | 150 °C |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | 0 °C |
| Protection Class of the Coating () | II |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] () | 70 °C |
| Storage temperature [°C] [Min] () | -40 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Electrical actuators, AMV 150, Supply voltage [V] AC: 230
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AMV 150 230V 24s/mm 5mm 250N
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
