082G3036

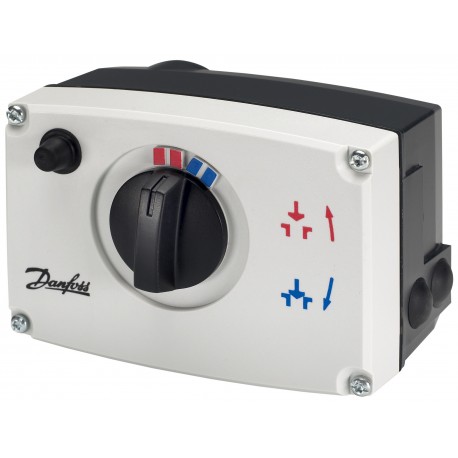

082G3036 DANFOSS HEATING AMV 20 SL 24V 15s/mm 10mm 450N
$0.00USD
3565 in stock
Key Specifications
EAN ():5702421533291
Type ():AMV 20 SL
Volume ():3.4 Liter
Spring up ():No
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421533291 |
| Type () | AMV 20 SL |
| Volume () | 3.4 Liter |
| Spring up () | No |
| Net weight () | 1.604 Kilogram |
| Speed type () | Standard |
| Application () | District Heating |
| Description () | AMV 20 SL 24V 15s/mm 10mm 450N |
| Stroke [mm] () | 10 mm |
| Gross weight () | 1.604 Kilogram |
| Actuator type () | Electrical |
| Product group () | Electrical actuators |
| Safety function () | No |
| Manual operation () | Yes |
| Closing force [N] () | 450 N |
| Position feedback () | no - potentiometer needed |
| Stroke limitation () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| Grade of enclosure () | IP54 |
| UK RoHS compliance () | Out of scope |
| Control signal type () | 3-point |
| Spring down (return) () | No |
| Actuator speed [s/mm] () | 15 s/mm |
| China RoHS compliance () | Out of scope |
| Power consumption [W] () | 2 W |
| Supply voltage [V] AC () | 24 V |
| EU RoHS exemption clause () | 6(c) |
| Ambient temperature [°C] [max] () | 55 °C |
| Ambient temperature [°C] [min] () | 0 °C |
| Protection Class of the Coating () | II |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] () | 70 °C |
| Storage temperature [°C] [Min] () | -40 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Electrical actuators, AMV 20 SL, Supply voltage [V] AC: 24
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AMV 20 SL 24V 15s/mm 10mm 450N
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
