082F1153

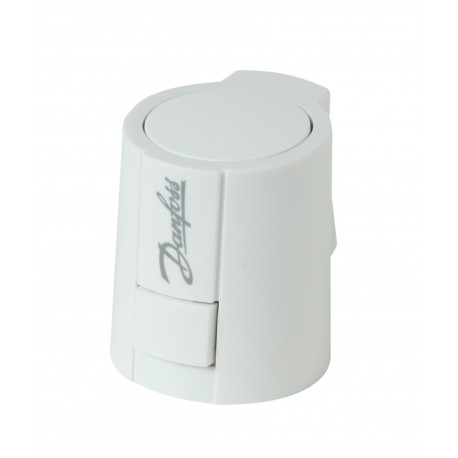

082F1153 DANFOSS HEATING ABN A5 230V 5mm NO Socket
$0.00USD
4004 in stock
Key Specifications
EAN ():5702420122267
Type ():ABN A5 On/Off
Volume ():0.338 Liter
Net weight ():0.14 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420122267 |
| Type () | ABN A5 On/Off |
| Volume () | 0.338 Liter |
| Net weight () | 0.14 Kilogram |
| Description () | ABN A5, 230V, 5 mm, Normally Open thermal actuator |
| Stroke [mm] () | 5 mm |
| Gross weight () | 0.14 Kilogram |
| Label product () | Yes |
| Product group () | Thermal actuators |
| Cable included () | No |
| SCIP dossier no. () | 8e26f954-ad08-4e08-a2a5-aa651124456b |
| Approval standard () | EC EN 60730UL 60730 |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Control signal type () | On/off and PWM |
| IP protection class () | IP54 |
| China RoHS compliance () | Out of scope |
| De-energized position () | Normally open |
| Supply voltage [V] AC () | 230 V |
| SCIP dossier product name () | 082F1153 |
| Compatibility with AB-QM size () | DN 10-32 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
ABN A5 On/Off, Supply voltage [V] AC: 230, 5.00 mm, Normally open
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
ABN A5, 230V, 5 mm, Normally Open thermal actuator
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
