In Stock Hot Product
080Z0200

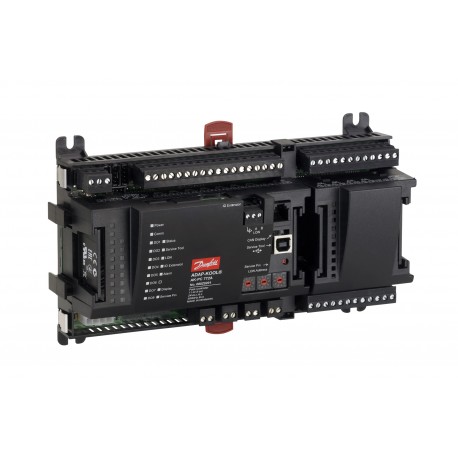

080Z0200 DANFOSS REFRIGERATION Pack controller
$0.00USD
3795 in stock
Key Specifications
EAN:5702428838108
Approval:C UR USC-TICKCEEACLLC CDC TYSK
Function:Pack w. Booster
Net weight:0.65 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428838108 |
| Approval | C UR USC-TICKCEEACLLC CDC TYSK |
| Function | Pack w. Booster |
| Net weight | 0.65 Kg |
| Gross weight | 0.94 Kg |
| Product name | Pack controller |
| Product type | AK-PC 772 |
| Product Group | Compressor/condenser control |
| Frequency [Hz] | 50/60 Hz |
| Oil management | Equalisation |
| Packing format | Single pack |
| Controller type | Pack Controller |
| Application area | Capacity control |
| Display - option | AK-MMIEKA 163BEKA 164BEKA 166 |
| Display on front | No |
| Fan control mode | PI |
| Product Language | CzechDanishDutchEnglishFinnishFrenchGermanItalianPolishPortugueseRussianSpanish |
| Product features | CO2 compliantCondenser error monitoringExternal comm. includedHeat recovery functionLoad sheddingNight setbackP0 optimizationPump controlThree way valve control |
| Programming tools | AK-ST 500 |
| Communication type | LON RS485RS232 |
| Further information | CO2/ CO2 |
| I/O connectors max. | 120 pc |
| Number of fans max. | 4 pc |
| Fan capacity control | Step/ Speed |
| Capacity control mode | PI |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Capacity control input | Pressure |
| Condenser control type | Temperature |
| Power consumption [VA] | 8 VA |
| Analog inputs (AI) [pc] | 11 pc |
| Compressor capacity mode | Step/ Speed |
| Digital outputs (DO) [pc] | 8 pc |
| Number of Compressors max. | 5 pc |
| Quantity per packing format | 1 pc |
| Additional alarm inputs max. | 10 pc |
| No.of extention modules max. | 11 pc |
| Additional analog inputs max. | 1 pc |
| Addit. thermostats inputs max. | 1 pc |
| Addit.press.switche inputs max | 1 pc |
| No.of compr. safty signals max | 6 pc |
Product Description
Pack controller, AK-PC 772
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
