In Stock Hot Product
080Z0196

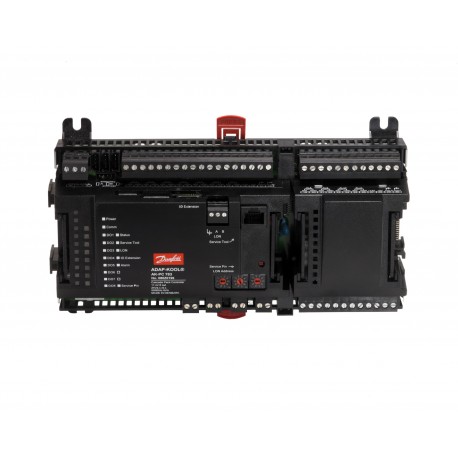

080Z0196 DANFOSS REFRIGERATION Pack controller
$0.00USD
4698 in stock
Key Specifications
EAN ():5702428819299
Type ():AK-PC 783
Volume ():6.248 Liter
Approval ():C-TICKCEEACLLC CDC TYSKcURus
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428819299 |
| Type () | AK-PC 783 |
| Volume () | 6.248 Liter |
| Approval () | C-TICKCEEACLLC CDC TYSKcURus |
| Function () | Pack w. Cascade |
| Net weight () | 0.645 Kg |
| Gross weight () | 0.938 Kg |
| Product group () | Compressor/condenser control |
| Frequency [Hz] () | 50/60 Hz |
| Oil management () | Yes, w. CO2 |
| Packing format () | Single pack |
| Controller type () | Pack Controller |
| Application area () | Capacity control |
| Display - option () | AK-MMIEKA 163BEKA 164BEKA 166 |
| Display on front () | No |
| Fan control mode () | PI |
| Product Language () | DutchEnglishFrenchGermanItalianPortugueseSpanish |
| Product features () | CO2 compliantCascade controlCondenser error monitoringExternal comm. includedFloating condenser pressureHeat recovery functionLoad sheddingNight setbackP0 optimization |
| Programming tools () | AK-ST 500 |
| Communication type () | LON RS485RS232 |
| EU RoHS compliance () | No - out of scope |
| Further information () | HFC/CO2, HC/CO2 |
| I/O connectors max. () | 120 pc |
| Number of fans max. () | 8 pc |
| Fan capacity control () | Step/ Speed |
| Capacity control mode () | PI |
| Supply voltage [V] AC () | 24 V |
| Supply voltage [V] DC () | 24 V |
| Capacity control input () | Pressure |
| Condenser control type () | Pressure |
| Power consumption [VA] () | 8 VA |
| Analog inputs (AI) [pc] () | 11 pc |
| Compressor capacity mode () | Step/ Speed |
| Product Name Description () | Pack controller |
| Digital outputs (DO) [pc] () | 8 pc |
| Number of Compressors max. () | 8 pc |
| Quantity per packing format () | 1 pc |
| Additional alarm inputs max. () | 10 pc |
| No.of extention modules max. () | 11 pc |
| Additional analog inputs max. () | 5 pc |
| Addit. thermostats inputs max. () | 5 pc |
| Addit.press.switche inputs max () | 5 pc |
| No.of compr. safty signals max () | 6 pc |
| REACH Candidate List substances () | No |
Product Description
Pack controller, AK-PC 783
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: Pack w. Cascade, Supply voltage [V] AC: 24, Communication type: RS232; LON RS485, Packing format: Single pack, Quantity per packing format: 1
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
