080Z0193

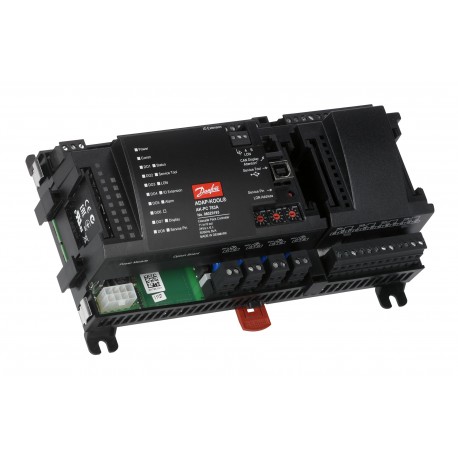

080Z0193 DANFOSS REFRIGERATION Pack controller
$0.00USD
3314 in stock
Key Specifications
EAN ():5702428977562
Type ():AK-PC 783A
Volume ():5.68 Liter
Approval ():C-TICKCEEACLLC CDC TYSKcURus
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428977562 |
| Type () | AK-PC 783A |
| Volume () | 5.68 Liter |
| Approval () | C-TICKCEEACLLC CDC TYSKcURus |
| Function () | Pack w. Cascade |
| Net weight () | 0.645 Kg |
| Serviceable () | No |
| Gross weight () | 0.941 Kg |
| Product group () | Compressor/condenser control |
| Frequency [Hz] () | 50/60 Hz |
| Oil management () | Yes, w. CO2 |
| Packing format () | Single pack |
| Controller type () | Pack Controller |
| Application area () | Capacity control |
| Display - option () | EKA 163BEKA 164BMMIGRS2 |
| Display on front () | No |
| Fan control mode () | PI |
| Product Language () | ChineseCzechDanishDutchEnglishFinnishFrenchGermanItalianPolishPortugueseRussianSpanish |
| Product features () | CO2 compliantCascade controlCondenser error monitoringExternal comm. includedFloating condenser pressureHeat recovery functionLoad sheddingNight setbackP0 optimization |
| Programming tools () | AK-ST 500 |
| Communication type () | LON RS485RJ11 (CAN) to DisplayRS232USB-B to PC |
| EU RoHS compliance () | No - out of scope |
| Further information () | HFC/CO2, HC/CO2 |
| I/O connectors max. () | 160 pc |
| Number of fans max. () | 8 pc |
| Product accessories () | Electron. control accessories |
| Fan capacity control () | Step/ Speed |
| Capacity control mode () | PI |
| Supply voltage [V] AC () | 24 V |
| Supply voltage [V] DC () | 24 V |
| Capacity control input () | Pressure |
| Condenser control type () | Pressure/ Temperature |
| Power consumption [VA] () | 8 VA |
| Analog inputs (AI) [pc] () | 11 pc |
| Compressor capacity mode () | Step/ Speed |
| Product Name Description () | Pack controller |
| Digital outputs (DO) [pc] () | 8 pc |
| Number of Compressors max. () | 12 pc |
| Additional PI Controls max. () | 3 pc |
| Quantity per packing format () | 1 pc |
| Additional alarm inputs max. () | 10 pc |
| No.of extention modules max. () | 11 pc |
| Additional analog inputs max. () | 3 pc |
| Addit. thermostats inputs max. () | 3 pc |
| Addit.press.switche inputs max () | 3 pc |
| No.of compr. safty signals max () | 6 pc |
Product Description
AK-PC 783A, Pack Controller
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
