080Z0140

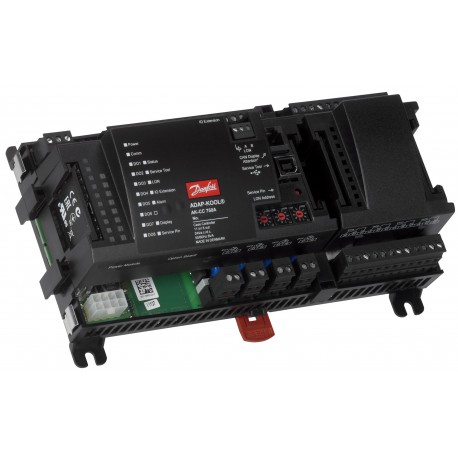

080Z0140 DANFOSS REFRIGERATION Case/room controller (EEV)
$0.00USD
3854 in stock
Key Specifications
EAN ():5702428992480
Type ():AK-CC 750A
Volume ():6.248 Liter
Approval ():C-TICKCEEACLLC CDC TYSKcURus
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428992480 |
| Type () | AK-CC 750A |
| Volume () | 6.248 Liter |
| Approval () | C-TICKCEEACLLC CDC TYSKcURus |
| Function () | 1-4 AKV(EEV), Flexible I/O |
| Net weight () | 0.645 Kg |
| Serviceable () | No |
| Gross weight () | 0.951 Kg |
| Product group () | Evaporator and room control |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Single pack |
| Controller type () | Case/Room controller (4 AKV) |
| Application area () | Refrigeration control |
| Display - option () | EKA 163BEKA 164BMMIGRS2 |
| Display on front () | No |
| Product Language () | ChineseCzechDanishDutchEnglishFinnishFrenchGermanItalianPolishPortugueseRussianSpanish |
| Programming tools () | AK-ST 500 |
| Valve output type () | AKV (EEV)ETS (EEV) |
| Communication type () | IO ExtensionLON RS485RJ11 (CAN) to DisplayUSB-B to PC |
| EU RoHS compliance () | No - out of scope |
| Enclosure rating IP () | IP10 |
| I/O connectors max. () | 80 pc |
| Product accessories () | Electron. control accessories |
| Temp. sensor support () | PTC 1000Pt 1000 |
| Supply voltage [V] AC () | 24 V |
| Supply voltage [V] DC () | 24 V |
| Communication built-in () | LON |
| Power consumption [VA] () | 8 VA |
| Analog inputs (AI) [pc] () | 11 pc |
| Product Name Description () | Case/room controller (EEV) |
| Digital outputs (DO) [pc] () | 8 pc |
| Number of Evaporators max. () | 4 pc |
| Press. Transmitter support () | RATIOMETRIC |
| Quantity per packing format () | 1 pc |
| Additional alarm inputs max. () | 10 pc |
| No.of extention modules max. () | 11 pc |
| Additional analog inputs max. () | 5 pc |
| Addit. thermostats inputs max. () | 5 pc |
| Addit.press.switche inputs max () | 5 pc |
| REACH Candidate List substances () | No |
Product Description
AK-CC 750A,Case Controller
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Application area: Refrigeration control, Function: 1-4 AKV(EEV), Flexible I/O, Communication type: IO Extension; RJ11 (CAN) to Display; LON RS485; USB-B to PC
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
