In Stock Hot Product
080G5350

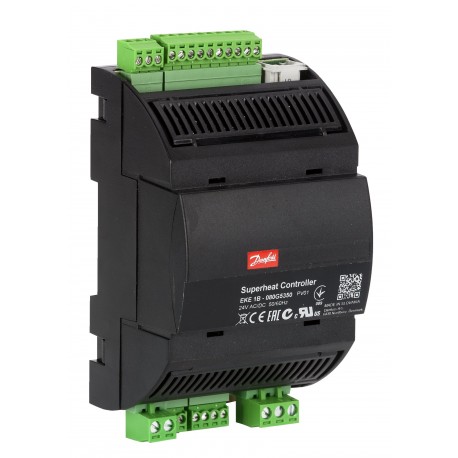

080G5350 DANFOSS REFRIGERATION Superheat controller
$0.00USD
4542 in stock
Key Specifications
EAN:5702428964326
Approval:C-TICKCEEACLLC CDC EURO-TYSKRoHS
Net weight:0.13 Kg
Gross weight:0.25 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428964326 |
| Approval | C-TICKCEEACLLC CDC EURO-TYSKRoHS |
| Net weight | 0.13 Kg |
| Gross weight | 0.25 Kg |
| Product name | Superheat controller |
| Product type | EKE 1B |
| Product Group | Electronic valve control |
| Frequency [Hz] | 50/60 Hz |
| Gateway option | MMIMYK |
| Packing format | Multi pack |
| Mounting method | DIN rail |
| Display - option | MMIGRS2 |
| Display on front | No |
| Product Language | ChineseEnglishFrenchGermanItalianPortugueseRussianSpanish |
| Product features | Alarm managementCapacity signal from masterDefrost SequenceExt reference, temp/SH controlLimitation functionsManual operationPreset ODReversible system with 1 EXVService modeStart upSuperheat referenceValve driver: Reference of OD |
| Programming tools | Koolprog |
| Valve output type | ETS 100ETS 25ETS 50ETS 6 |
| Analog inputs type | Voltage |
| Communication type | Modbus RS485 RTURJ11 (CAN) to User Interface |
| Further information | Shared power supplySignal share via hardwire |
| Temp. sensor support | NTC10000 |
| Enclosure rating note | IP40 for Housing |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Analog inputs (AI) [pc] | 2 pc |
| Pressure sensor support | Ratiometric 0.5 - 4 V DC |
| Digital inputs (DI) [pc] | 2 pc |
| Digital outputs (DO) [pc] | 1 pc |
| Number of pressure sensors | 1 |
| Temp. sensor configuration | S2 and S3 or S4 |
| Quantity per packing format | 16 pc |
| Battery back-up [V] DC [Max] | 24 V |
| Battery back-up [V] DC [Min] | 18 V |
| Number of temperature sensors | 2 |
Product Description
EKE 1B, Superheat controller
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
