080G0312

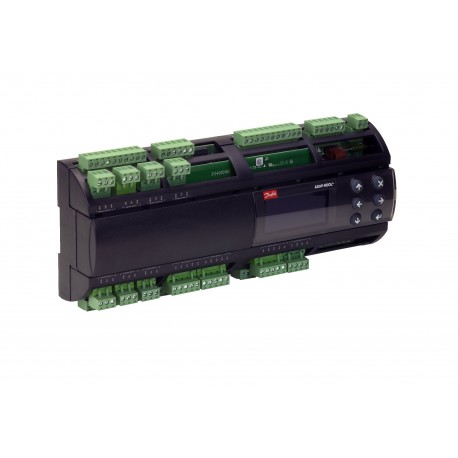

080G0312 DANFOSS REFRIGERATION Pack controller
$0.00USD
4838 in stock
Key Specifications
EAN:5702428882705
Approval:CEEAC
Function:1 Suction and 1 Condenser
Equipment:Incl. Connectors
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428882705 |
| Approval | CEEAC |
| Function | 1 Suction and 1 Condenser |
| Equipment | Incl. Connectors |
| Net weight | 1.05 Kg |
| Gross weight | 1.05 Kg |
| Product name | Pack controller |
| Product type | AK-PC 651 |
| Product Group | Compressor/condenser control |
| Frequency [Hz] | 50/60 Hz |
| Packing format | Multi pack |
| Mounting method | DIN rail |
| Application area | Capacity control |
| Display - option | On front. Option: MMIGRS2 |
| Display on front | Yes |
| Fan control mode | PI |
| Product Language | CroatianCzechDanishDutchEnglishFrenchGermanHungarianItalianPolishPortugueseRussianSpanish |
| Product features | BuzzerCompressor safetyDischarge gas temp. safetyFan safetyFloating condenser pressureHeat recovery functionHigh pressure safetyLCD display built inLoad sheddingLow pressure safetyNight optimizationP0 optimizationReal time clockSuction gas temp. safety |
| Communication type | MODBUS |
| Further information | Relays 5,6 solid state type |
| Insulation material | Mineral wool λ=0,047 W/mK (50 deg) / 20 mm |
| Fan capacity control | Step/ Speed |
| Capacity control mode | PI |
| Power consumption [W] | 12 W |
| Capacity control input | Pressure/ Temperature |
| Condenser control type | Pressure/ Temperature |
| Analog inputs (AI) [pc] | 10 pc |
| Analog outputs (AO) [pc] | 4 pc |
| Compressor capacity mode | Step/ Speed/ PWM |
| Digital inputs (DI) [pc] | 18 pc |
| Digital outputs (DO) [pc] | 15 pc |
| Number of Compressors max. | 10 pc |
| Quantity per packing format | 8 pc |
| Supply voltage [V] AC [Max] | 230 V |
| Supply voltage [V] AC [Min] | 110 V |
| Supply voltage [V] a.c. [Max] | 230 V |
| Supply voltage [V] a.c. [Min] | 110 V |
Product Description
AK-PC 651, Control 230V LCD 2SSR RS485 S
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
