080G0288

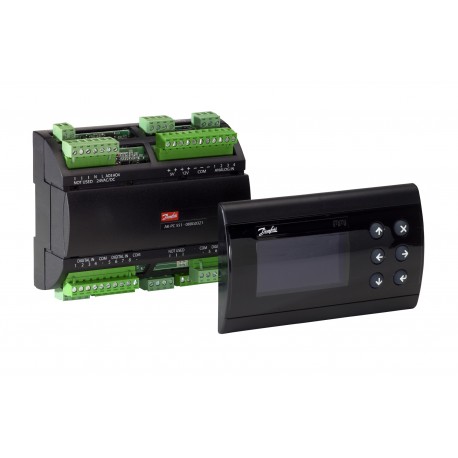

080G0288 DANFOSS REFRIGERATION Pack controller
$0.00USD
4192 in stock
Key Specifications
EAN ():5702428843072
Type ():AK-PC 551
Volume ():11.809 Liter
Approval ():CECMIMEACcURus
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428843072 |
| Type () | AK-PC 551 |
| Volume () | 11.809 Liter |
| Approval () | CECMIMEACcURus |
| Function () | 2 Suction and common Condenser |
| Equipment () | Incl. Connectors and Display |
| Net weight () | 0.86 Kg |
| Battery qty () | 1 |
| Serviceable () | No |
| Gross weight () | 1.1 Kg |
| Product group () | Compressor/condenser control |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Mounting method () | DIN rail |
| Application area () | Capacity control |
| Display - option () | Incl. extern display MMIGRS2 |
| Display on front () | No |
| Fan control mode () | PI |
| Product Language () | CroatianCzechDanishDutchEnglishFrenchGermanHungarianItalianPolishPortugueseRomaniaRussianSerbianSpanishTurkish |
| Product features () | BuzzerCompressor safetyDischarge gas temp. safetyFan safetyFloating condenser pressureHeat recovery functionHigh pressure safetyLoad sheddingLow pressure safetyNight optimizationP0 optimizationReal time clockSuction gas temp. safety |
| Type designation () | AK-PC 551 |
| Communication type () | MODBUS |
| EU RoHS compliance () | No - out of scope |
| Further information () | Relays 5,6 solid state type |
| Product accessories () | Electron. control accessories |
| Battery type or Name () | Lithium coin cell |
| Fan capacity control () | Step/ Speed |
| Capacity control mode () | PI |
| Power consumption [W] () | 10 W |
| Supply voltage [V] AC () | 24 V |
| Supply voltage [V] DC () | 24 V |
| Capacity control input () | Pressure/ Temperature |
| Condenser control type () | Pressure/ Temperature |
| Analog inputs (AI) [pc] () | 8 pc |
| Analog outputs (AO) [pc] () | 2 pc |
| Compressor capacity mode () | Step/ Speed/ PWM |
| Digital inputs (DI) [pc] () | 8 pc |
| Product Name Description () | Pack controller |
| Digital outputs (DO) [pc] () | 8 pc |
| Number of Compressors max. () | 8 pc |
| 1 Primary battery weight Kg () | 0.001 |
| Quantity per packing format () | 12 pc |
| 1 Primary battery SUM weight Kg () | 0.001 |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | Yes |
Product Description
Pack controller, AK-PC 551
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: 2 Suction and common Condenser, Digital inputs (DI) [pc]: 8, Supply voltage [V] AC: 24, Communication type: MODBUS, Packing format: Multi pack, Quantity per packing format: 12
