In Stock Hot Product
080G0285

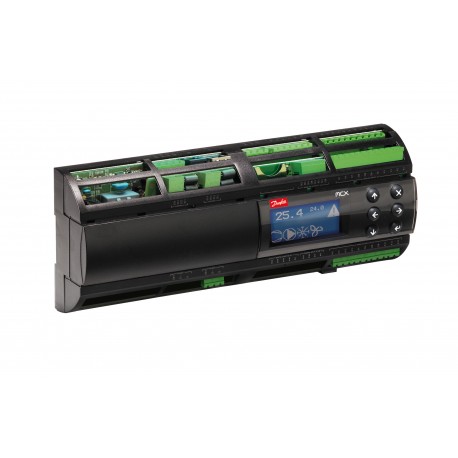

080G0285 DANFOSS REFRIGERATION Programmable Controller, 15 relays, MCX152V
$0.00USD
3617 in stock
Key Specifications
EAN ():5702428484183
Type ():MCX152V
Buzzer ():No
Volume ():4.762 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428484183 |
| Type () | MCX152V |
| Buzzer () | No |
| Volume () | 4.762 Liter |
| Approval () | CEGOST R |
| Function () | Programmable Controller |
| Net weight () | 0.823 Kg |
| Battery qty () | 1 |
| Serviceable () | No |
| Display type () | LCD |
| Gross weight () | 0.998 Kg |
| Product group () | Programmable controllers |
| Frequency [Hz] () | 50/60 Hz |
| Packing format () | Multi pack |
| Mounting method () | DIN rail |
| Real time clock () | Yes |
| Type designation () | MCX152V |
| Communication type () | CANBUSEthernetMODBUSRS485 |
| EU RoHS compliance () | Yes |
| Enclosure rating IP () | IP40 |
| Further information () | Backup battery input |
| Product accessories () | Electron. control accessories |
| Battery type or Name () | Lithium coin cell |
| Power consumption [W] () | 27 W |
| Connector kit Code No. () | 080G0308 |
| Connector kit included () | Yes |
| Analog inputs (AI) [pc] () | 14 pc |
| Analog outputs (AO) [pc] () | 6 pc |
| Digital inputs (DI) [pc] () | 18 pc |
| Product Name Description () | Program. controller, 15 relays |
| Digital outputs (DO) [pc] () | 15 pc |
| 1 Primary battery weight Kg () | 0.001 |
| Quantity per packing format () | 8 pc |
| Supply voltage [V] AC [max] () | 230 V |
| Supply voltage [V] AC [min] () | 110 V |
| 1 Primary battery SUM weight Kg () | 0.001 |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | Yes |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Function: Programmable Controller, Supply voltage [V] AC: 110 - 230, Communication type: CANBUS; RS485; Ethernet; MODBUS, Packing format: Multi pack, Quantity per packing format: 8
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
