079B0041

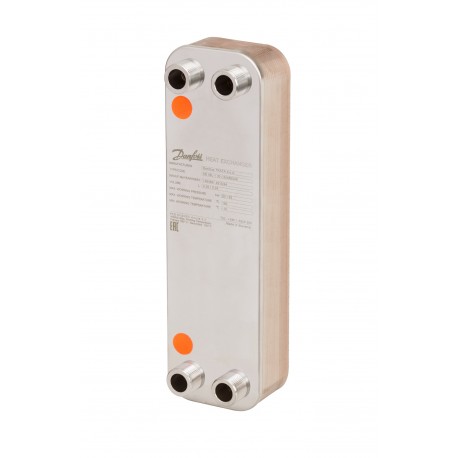

079B0041 DANFOSS HEATING XB06H+-1-40 2 25 A 2G3/4 (I-PACK 120)
$0.00USD
4610 in stock
Key Specifications
Type ():XB06H+-1
Volume ():3.58 Liter
Approval ():PED
Net weight ():3.08 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type () | XB06H+-1 |
| Volume () | 3.58 Liter |
| Approval () | PED |
| Net weight () | 3.08 Kilogram |
| Fluid Group () | 1 |
| Gross weight () | 3.383 Kilogram |
| PED category () | Art. 4, par. 3 |
| Plate pattern () | H+ |
| Product group () | Heat exchangers |
| Packing format () | Industrial pack |
| Brazing material () | Copper |
| In scope of WEEE () | No |
| Number of passes () | 1 |
| Number of plates () | 40 |
| Total width [mm] () | 95 mm |
| Connection size 1 () | 3/4 |
| Connection size 2 () | 3/4 |
| Connection type 1 () | G |
| Connection type 2 () | G |
| EU RoHS compliance () | Yes |
| Plate material no. () | 1.4404 |
| UK RoHS compliance () | Yes |
| Connection standard () | ISO 228/1 |
| China RoHS compliance () | Yes |
| Connection length 1 [mm] () | 20 mm |
| Connection length 2 [mm] () | 20 mm |
| EU RoHS exemption clause () | No |
| Product Name Description () | Micro Plate heat exchanger |
| UK RoHS exemption clause () | No |
| Volume per channel 1 [l] () | 0.018 L |
| Volume per channel 2 [l] () | 0.018 L |
| Quantity per packing format () | 120 pc |
| Max working pressure 1 [bar] () | 25 bar |
| Max working pressure 2 [bar] () | 25 bar |
| Connection length side 1 [mm] () | 20 mm |
| Connection length side 2 [mm] () | 20 mm |
| Temperature range [°C] [max] () | 180 °C |
| Temperature range [°C] [min] () | -196 °C |
| Horizontal center porthole[mm] () | 45 mm |
| Material Description (Short Te () | XB06H+-1-40_2Cu_25_S1_2G3/4_IP |
| Total height without feet [mm] () | 320 mm |
| Vertical center porthole 1[mm] () | 270 mm |
| Vertical center porthole 2[mm] () | 270 mm |
| REACH Candidate List substances () | No |
| Vertical center porthole side 1 [mm] () | 270 mm |
| In scope of WEEE and contain batteries () | No |
Product Description
Micro Plate heat exchanger, XB06H+-1, Number of plates: 40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
25 bar, Brazing material: Copper
