077B0220

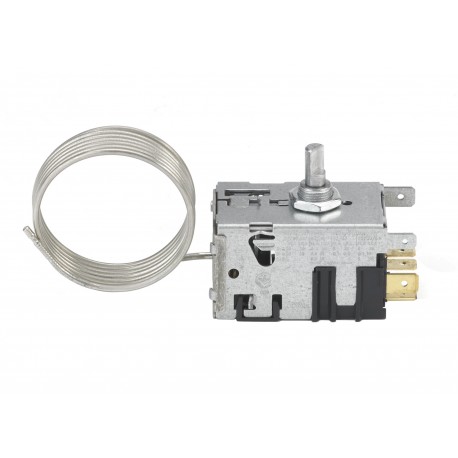

077B0220 DANFOSS REFRIGERATION Thermostat
$0.00USD
3325 in stock
Key Specifications
EAN ():5702424005887
Type ():B02
Volume ():0.236 Liter
Approval ():BEABCEEACLLC CDC TYSKcURus
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424005887 |
| Type () | B02 |
| Volume () | 0.236 Liter |
| Approval () | BEABCEEACLLC CDC TYSKcURus |
| Terminals () | 6,3 x 0,8 mm All |
| Net weight () | 0.091 Kg |
| Gross weight () | 0.091 Kg |
| Product group () | Mechanical cold controls |
| Packing format () | Industrial pack |
| Type designation () | Standard thermostat |
| Used for product () | Absorption coolers |
| Cold cut-in [°C] () | -7 °C |
| Warm cut-in [°C] () | 3.5 °C |
| Adjusting position () | Warm |
| Cold cut-out [°C] () | -13 °C |
| EU RoHS compliance () | No - out of scope |
| Warm cut-out [°C] () | -1 °C |
| Product Name Description () | Thermostat |
| Capillary tube length [mm] () | 1200 mm |
| Quantity per packing format () | 100 pc |
| Adjusted at pressure [mm Hg] () | 760 mmHg |
| REACH Candidate List substances () | No |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -25 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Standard thermostat, B02
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product Type: B02, Type designation: Standard thermostat, Used for product: Absorption coolers, Warm cut-in [°C]: 3.5, Warm cut-out [°C]: -1.0, Cold cut-out [°C]: -13.0, Cold cut-out [°C]: -13.0, Capillary tube length [mm]: 1200
