In Stock Hot Product
077B0028

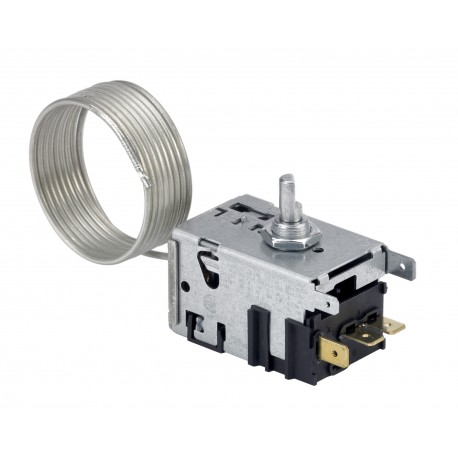

077B0028 DANFOSS REFRIGERATION Liquid and Bottle Coolers
$0.00USD
4200 in stock
Key Specifications
EAN ():5702424005948
Type ():B0
Volume ():0.236 Liter
Approval ():BEABCEEACLLC CDC TYSKcURus
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424005948 |
| Type () | B0 |
| Volume () | 0.236 Liter |
| Approval () | BEABCEEACLLC CDC TYSKcURus |
| Terminals () | 6,3 x 0,8 mm All |
| Net weight () | 0.088 Kg |
| Gross weight () | 0.088 Kg |
| Product group () | Mechanical cold controls |
| Packing format () | Industrial pack |
| Type designation () | Standard thermostat |
| Used for product () | Bottle coolers |
| Cold cut-in [°C] () | 3 °C |
| Warm cut-in [°C] () | 10.5 °C |
| Adjusting position () | Cold |
| Cold cut-out [°C] () | -4.5 °C |
| EU RoHS compliance () | No - out of scope |
| Warm cut-out [°C] () | 5 °C |
| Product Name Description () | Thermostat |
| Capillary tube length [mm] () | 1200 mm |
| Quantity per packing format () | 100 pc |
| Adjusted at pressure [mm Hg] () | 760 mmHg |
| REACH Candidate List substances () | No |
| Ambient temperature range [°C] [max] () | 65 °C |
| Ambient temperature range [°C] [min] () | -25 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Thermostat 077B0, 6-36 amp
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Product Type: B0, Type designation: Standard thermostat, Used for product: Bottle coolers, Warm cut-in [°C]: 10.5, Warm cut-out [°C]: 5.0, Cold cut-in [°C]: 3.0, Cold cut-out [°C]: -4.5, Capillary tube length [mm]: 1200
