In Stock Hot Product
071N1006

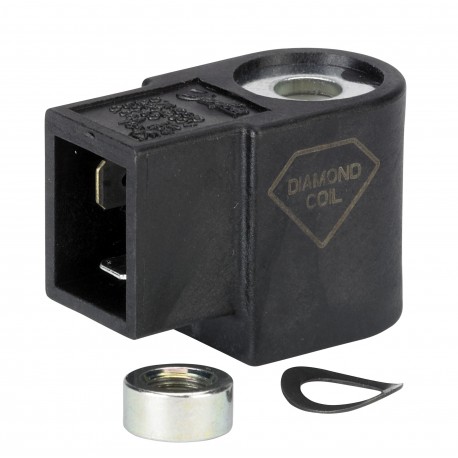

071N1006 DANFOSS HEATING NC T85 coil service kit
$0.00USD
4843 in stock
Key Specifications
EAN ():5702425114168
Type ():Accessories for BFP
Volume ():0.107 Liter
Approval ():CE
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425114168 |
| Type () | Accessories for BFP |
| Volume () | 0.107 Liter |
| Approval () | CE |
| Net weight () | 0.074 Kilogram |
| Description () | COIL T85 230 V AC |
| CE evaluated () | Yes |
| Coil Current () | AC |
| Current type () | AC |
| Gross weight () | 0.078 Kilogram |
| UL evaluated () | Out of scope |
| Product group () | Accessories for Burner Components |
| Packing format () | Multi pack |
| Coil voltage [V] () | 220 - 230 |
| SCIP dossier no. () | ca2c7efc-da5b-4ebc-8e19-1649b28a0a20 |
| EU RoHS compliance () | Yes |
| Grade of enclosure () | IP40 |
| UK RoHS compliance () | Yes |
| Coil consumption [W] () | 9 W |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | No |
| Supply voltage [V] [Max] () | 230 V |
| Supply voltage [V] [Min] () | 220 V |
| UK RoHS exemption clause () | No |
| SCIP dossier product name () | NC T85 coil service kit |
| Quantity per packing format () | 45 pc |
| Supply peak voltage [V] [Max] () | 253 V |
| Supply peak voltage [V] [Min] () | 207 V |
| Ambient temperature [°C] [max] () | 85 °C |
| Ambient temperature [°C] [min] () | -20 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] () | 85 °C |
| Storage temperature [°C] [Min] () | -20 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
COIL T85 230 V AC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
COIL T85 230 V AC
