In Stock Hot Product
070L3230

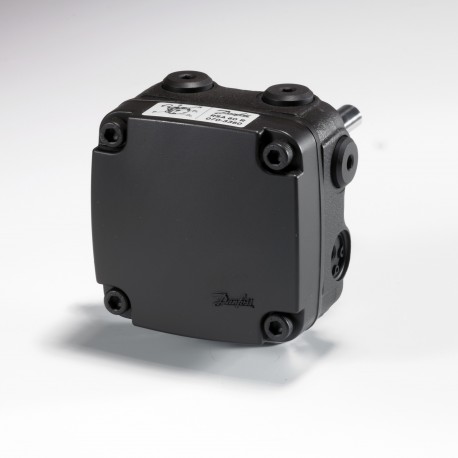

070L3230 DANFOSS HEATING RSA 040 M 2251
$0.00USD
3719 in stock
Key Specifications
EAN ():5702425012464
Type ():RSA
Serie ():RS
Volume ():3.407 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425012464 |
| Type () | RSA |
| Serie () | RS |
| Volume () | 3.407 Liter |
| Approval () | CE |
| Comments () | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Oil type () | Kerosene/Light oil |
| Rotation () | L |
| Net weight () | 2.117 Kilogram |
| Description () | RSA 40 |
| Filter type () | Ring |
| 1 or 2 stage () | 1 |
| CE evaluated () | Yes |
| Gross weight () | 2.118 Kilogram |
| UL evaluated () | Out of scope |
| Biofuel blend () | 100 |
| Product group () | Pumps |
| Capacity [l/h] () | 82 L/h |
| Capacity group () | 50-99 |
| Packing format () | Multi pack |
| Pipe connection () | 1 pipe |
| Closing function () | Shut-off |
| Number of stages () | 1 |
| SCIP dossier no. () | 40031d98-d1da-40e6-92aa-43b4111131a3 |
| Speed [rpm] [Max] () | 3600 rpm |
| Speed [rpm] [Min] () | 1400 rpm |
| EU RoHS compliance () | Yes with exemptions |
| Filter area [cm²] () | 75 cm² |
| Filter grade [µm] () | 150 |
| UK RoHS compliance () | Yes with exemptions |
| Shaft diameter [mm] () | 10 mm |
| Pressure [bar] [Max] () | 21 bar |
| Pressure [bar] [Min] () | 5.5 bar |
| China RoHS compliance () | Out of scope |
| Power consumption [W] () | 70 W |
| Viscosity [cSt] [Max] () | 18 cSt |
| Viscosity [cSt] [Min] () | 1.3 cSt |
| Definition point [l/h] () | 2800 min-1, 7 bar, 4.3 cSt |
| Flats/key on the shaft () | 1 flat |
| Nozzle/pressure outlet () | L |
| Oil pump speed [op/min] () | 3600 op/min |
| EU RoHS exemption clause () | 6(a)6(c) |
| UK RoHS exemption clause () | 1218 |
| SCIP dossier product name () | Oil pumps - RSA 040 M 2251 |
| Capacity range [l/h] [Max] () | 99 L/h |
| Capacity range [l/h] [Min] () | 50 L/h |
| Starting torque [Nm] [Max] () | 0.22 N-m |
| Quantity per packing format () | 6 pc |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -10 °C |
| Pressure kerosene [bar] [Max] () | 12 bar |
| Factory pressure setting [bar] () | 7 bar |
| Pressure feed line [bar] [Max] () | 4 bar |
| Ambient temperature [°C] [max] () | 120 °C |
| Ambient temperature [°C] [min] () | -20 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Max] () | 120 °C |
| Storage temperature [°C] [Min] () | -25 °C |
| Suction Line Vacuum [bar] [Max] () | 0.4 bar |
| In scope of WEEE and contain batteries () | No |
| Pressure range special spring [bar] [Max] () | 5 bar |
| Pressure range special spring [bar] [Min] () | 1 bar |
Product Description
Pumps, RSA, 82.00 L/h, Rotation: L, Nozzle/pressure outlet: L
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
RSA 40
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
