In Stock Hot Product
068Z6084

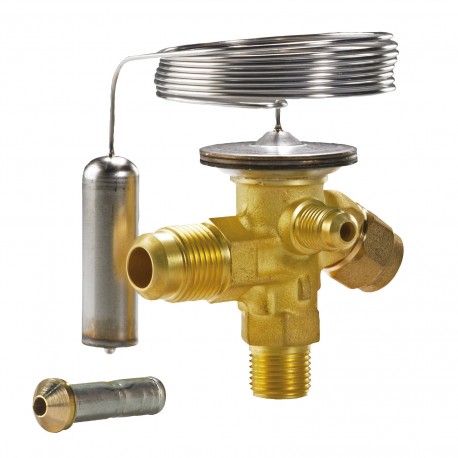

068Z6084 DANFOSS REFRIGERATION Thermostatic expansion valve
$0.00USD
4008 in stock
Key Specifications
EAN:5702422114154
Approval:EACLLC CDC TYSK
Category:Art. 4, par. 3
Direction:Angleway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702422114154 |
| Approval | EACLLC CDC TYSK |
| Category | Art. 4, par. 3 |
| Direction | Angleway |
| Net weight | 0.29 Kg |
| Fluid Group | II |
| Serviceable | TXV spare parts |
| Gross weight | 0.34 Kg |
| Orifice size | 02 |
| Product name | Thermostatic expansion valve |
| Product type | TEX 2 |
| Refrigerants | R22/R407C |
| Body material | Brass |
| Product Group | Expansion valves |
| Flow direction | Bi-flow |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Inlet size [in] | 3/8 IN |
| Outlet size [in] | 1/2 IN |
| Superheat setting | Adjustable |
| Parts Program name | T2/TE2 |
| Connection material | Brass |
| Product accessories | TXV accessories |
| Inlet connection type | FLARE |
| Pressure equalization | Externally equalized |
| Equalization size [in] | 1/4 IN |
| Outlet connection type | FLARE |
| Orifice capacities [TR] | 1.3 tons |
| Orifice capacities [kW] | 4.7 kW |
| Flow direction indicator | Embossed 1-way arrow |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Max. Working Pressure [bar] | 34 bar |
| Quantity per packing format | 20 pc |
| Static Superheat (SS) [°C] | 5 °C |
| Static Superheat (SS) [°F] | 9 °F |
| Equalization connection type | FLARE |
| Max. Working Pressure [psig] | 500 psig |
| Rated cap. cond. Range N [SI] | OS=6Ktcond=38 ºCtevap=4.4 ºCtliq=37 ºC |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Rated cap. cond. Range N [IMP] | OS=10.8 ºFtcond=100 ºFtevap=40 ºFtliq=98 ºF |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
