068Z6040

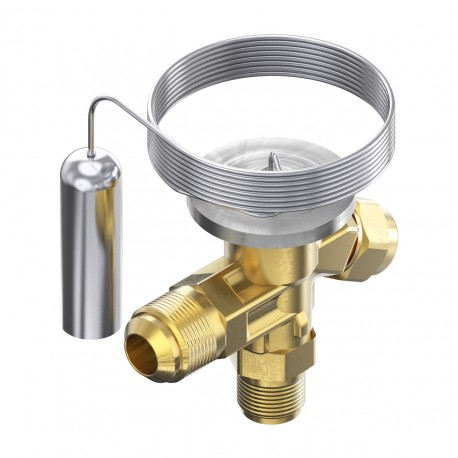

068Z6040 DANFOSS REFRIGERATION Thermostatic expansion valve
$0.00USD
4334 in stock
Key Specifications
EAN ():5702422118725
Type ():T 2
Volume ():0.489 Liter
Approval ():LLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422118725 |
| Type () | T 2 |
| Volume () | 0.489 Liter |
| Approval () | LLC CDC TYSK |
| Direction () | Angleway |
| Net weight () | 0.297 Kg |
| Fluid Group () | 2 |
| Serviceable () | TXV spare parts |
| Gross weight () | 0.33 Kg |
| Orifice size () | 01 |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R22/R407C |
| Body material () | Brass |
| Product group () | Expansion valves |
| Flow direction () | Single-flow |
| Packing format () | Multi pack |
| Parts included () | Bulb strap |
| Inlet size [in] () | 3/8 in |
| Outlet size [in] () | 1/2 in |
| SCIP dossier no. () | 6450ee16-252d-49df-8f77-4136a47bb857 |
| Superheat setting () | Adjustable |
| Parts Program name () | T2/TE2 |
| Connection material () | Brass |
| Product accessories () | TXV accessories |
| Inlet connection type () | Flare |
| Pressure equalization () | Internally equalized |
| Outlet connection type () | Flare |
| Orifice capacities [TR] () | 1 TR |
| Orifice capacities [kW] () | 3.5 kW |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Thermostatic expansion valve |
| SCIP dossier product name () | T2/TE2 |
| Capillary tube length [in] () | 59 in |
| Capillary tube length [mm] () | 1500 mm |
| Max. Working Pressure [bar] () | 34 bar |
| Quantity per packing format () | 20 pc |
| Static Superheat (SS) [°C] () | 4 °C |
| Static Superheat (SS) [°F] () | 7.2 °F |
| Max. Working Pressure [psig] () | 500 psig |
| Rated cap. cond. Range N [SI] () | OS=6Ktcond=38 ºCtevap=4.4 ºCtliq=37 ºC |
| Temperature range [°C] [max] () | 10 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 50 °F |
| Temperature range [°F] [min] () | -40 °F |
| Rated cap. cond. Range N [IMP] () | OS=10.8 ºFtcond=100 ºFtevap=40 ºFtliq=98 ºF |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
T 2 Therm. exp. valve Flare/Flare
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -40 - 10, Orifice capacities [kW]: 3.50, Orifice capacities [TR]: 1.00, Pressure equalization: Internally equalized
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
