068Z3738

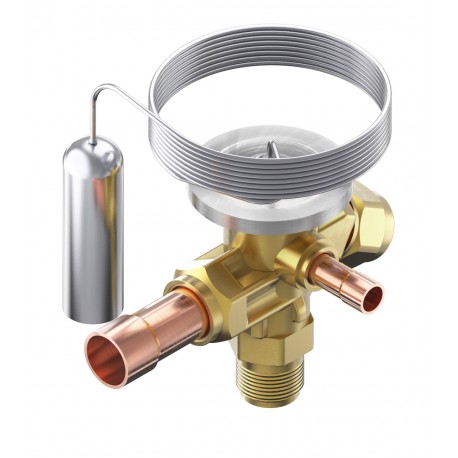

068Z3738 DANFOSS REFRIGERATION Thermostatic expansion valve
$0.00USD
4847 in stock
Key Specifications
EAN ():5702428988339
Type ():TE 2
Volume ():0.494 Liter
Approval ():EACLLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428988339 |
| Type () | TE 2 |
| Volume () | 0.494 Liter |
| Approval () | EACLLC CDC TYSK |
| Direction () | Angleway |
| Net weight () | 0.279 Kg |
| Fluid Group () | 2 |
| Serviceable () | TXV spare parts |
| Gross weight () | 0.302 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R448AR449A |
| Body material () | Brass |
| Product group () | Expansion valves |
| Flow direction () | Single-flow |
| Packing format () | Multi pack |
| Parts included () | Bulb strap |
| Inlet size [in] () | 3/8 in |
| MOP Point [°C] () | -20 °C |
| MOP Point [°F] () | -5 °F |
| MOP Point [psig] () | MOP 35 |
| Outlet size [in] () | 1/2 in |
| SCIP dossier no. () | 6450ee16-252d-49df-8f77-4136a47bb857 |
| Superheat setting () | Adjustable |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | T2/TE2 |
| Connection material () | BrassCopper |
| Product accessories () | TXV accessories |
| Inlet connection type () | Flare |
| Pressure equalization () | Externally equalized |
| Equalization size [in] () | 1/4 in |
| Outlet connection type () | Solder |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Thermostatic expansion valve |
| SCIP dossier product name () | T2/TE2 |
| Capillary tube length [in] () | 59 in |
| Capillary tube length [mm] () | 1500 mm |
| Max. Working Pressure [bar] () | 34 bar |
| Quantity per packing format () | 20 pc |
| Static Superheat (SS) [°C] () | 4 °C |
| Static Superheat (SS) [°F] () | 7.2 °F |
| Equalization connection type () | Solder |
| Max. Working Pressure [psig] () | 500 psig |
| Temperature range [°C] [max] () | -25 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | -15 °F |
| Temperature range [°F] [min] () | -75 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
TE 2 Therm. exp. valve Flare/Solder
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -60 - -25, MOP Point [°C]: -20, Pressure equalization: Externally equalized
