068U4516

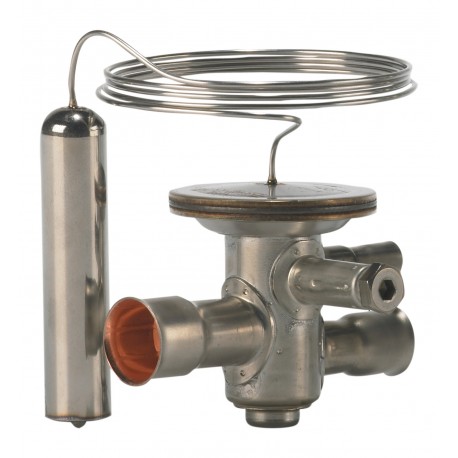

068U4516 DANFOSS REFRIGERATION Thermostatic expansion valve, TCBE
$0.00USD
4185 in stock
Key Specifications
EAN ():5702428030724
Type ():TCBE
Volume ():0.5 Liter
Approval ():EACLLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428030724 |
| Type () | TCBE |
| Volume () | 0.5 Liter |
| Approval () | EACLLC CDC TYSK |
| Direction () | Straightway |
| Net weight () | 0.189 Kg |
| Fluid Group () | 2 |
| Serviceable () | No |
| Gross weight () | 0.205 Kg |
| Orifice size () | 1 |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R407C |
| Body material () | Stainless steel |
| Product group () | Expansion valves |
| Flow direction () | Bi-flow |
| Packing format () | Industrial pack |
| Parts included () | Bulb strap |
| Inlet size [in] () | 1/2 in |
| Outlet size [in] () | 5/8 in |
| SCIP dossier no. () | 07795324-de66-41b2-9761-afe6640e393c |
| Identical product () | 068U4249 |
| Superheat setting () | Adjustable |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Bi-metal: Steel/copper |
| Product accessories () | TXV accessories |
| Inlet connection type () | Solder, ODF |
| Pressure equalization () | Externally equalized |
| Equalization size [in] () | 1/4 in |
| Outlet connection type () | Solder, ODF |
| Orifice capacities [TR] () | 5.4 TR |
| Orifice capacities [kW] () | 19 kW |
| Flow direction indicator () | Laser engraved 1-way arrow |
| Product Name Description () | Thermostatic expansion valve |
| UL approved refrigerants () | R407C |
| SCIP dossier product name () | TU/TC |
| Capillary tube length [in] () | 35 in |
| Capillary tube length [mm] () | 900 mm |
| Max. Working Pressure [bar] () | 45.5 bar |
| Quantity per packing format () | 45 pc |
| Static Superheat (SS) [°C] () | 5 °C |
| Static Superheat (SS) [°F] () | 9 °F |
| Equalization connection type () | Solder, ODF |
| Max. Working Pressure [psig] () | 660 psig |
| Rated cap. cond. Range N [SI] () | OS=4Ktcond=38 ºCtevap=4.4 ºCtliq=37 ºC |
| Temperature range [°C] [max] () | 10 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 50 °F |
| Temperature range [°F] [min] () | -40 °F |
| Rated cap. cond. Range N [IMP] () | OS=7.2 ºFtcond=100 ºFtevap=40 ºFtliq=98 ºF |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -40 - 10, Orifice capacities [kW]: 19.00, Orifice capacities [TR]: 5.40, Pressure equalization: Externally equalized
