068U4331

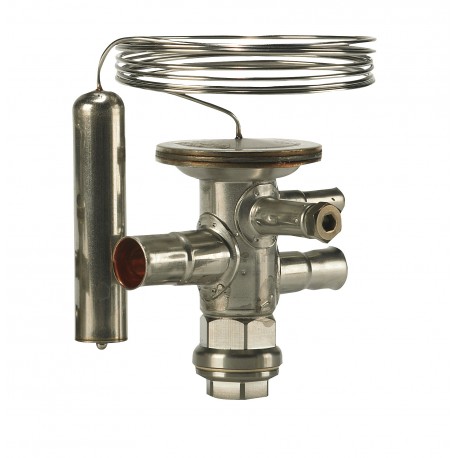

068U4331 DANFOSS REFRIGERATION Thermostatic expansion valve
$0.00USD
3853 in stock
Key Specifications
EAN ():5702428052603
Type ():TCAE
Volume ():0.48 Liter
Approval ():EACLLC CDC TYSKUL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428052603 |
| Type () | TCAE |
| Volume () | 0.48 Liter |
| Approval () | EACLLC CDC TYSKUL |
| Direction () | Straightway |
| Net weight () | 0.202 Kg |
| Fluid Group () | 2 |
| Serviceable () | TXV spare parts |
| Gross weight () | 0.224 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R407C |
| Body material () | Stainless steel |
| Product group () | Expansion valves |
| Flow direction () | Single-flow |
| Packing format () | Multi pack |
| Parts included () | Bulb strap |
| Inlet size [mm] () | 12 mm |
| MOP Point [°C] () | 15 °C |
| MOP Point [°F] () | 60 °F |
| MOP Point [psig] () | MOP 95 |
| Outlet size [mm] () | 16 mm |
| SCIP dossier no. () | 07795324-de66-41b2-9761-afe6640e393c |
| Superheat setting () | Adjustable |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | TCA |
| Connection material () | Bi-metal: Steel/copper |
| Product accessories () | TXV accessories |
| Inlet connection type () | Solder, ODF |
| Pressure equalization () | Externally equalized |
| Equalization size [mm] () | 6 mm |
| Outlet connection type () | Solder, ODF |
| Flow direction indicator () | Laser engraved 1-way arrow |
| Product Name Description () | Thermostatic expansion valve |
| UL approved refrigerants () | R407C |
| SCIP dossier product name () | TU/TC |
| Capillary tube length [in] () | 59 in |
| Capillary tube length [mm] () | 1500 mm |
| Max. Working Pressure [bar] () | 45.5 bar |
| Quantity per packing format () | 20 pc |
| Static Superheat (SS) [°C] () | 4 °C |
| Static Superheat (SS) [°F] () | 7.2 °F |
| Equalization connection type () | Solder, ODF |
| Max. Working Pressure [psig] () | 660 psig |
| Rated cap. cond. Range N [SI] () | OS=4Ktcond=38 ºCtevap=4.4 ºCtliq=37 ºC |
| Temperature range [°C] [max] () | 10 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 50 °F |
| Temperature range [°F] [min] () | -40 °F |
| Rated cap. cond. Range N [IMP] () | OS=7.2 ºFtcond=100 ºFtevap=40 ºFtliq=98 ºF |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
TCAE/s Therm. exp. valve
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -40 - 10, MOP Point [°C]: 15, Pressure equalization: Externally equalized
