068U1753

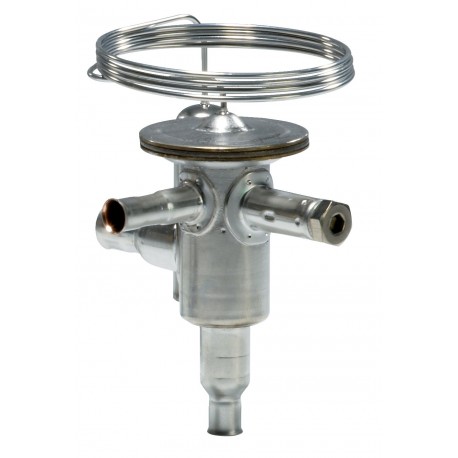

068U1753 DANFOSS REFRIGERATION Thermostatic expansion valve, TUBE
$0.00USD
3739 in stock
Key Specifications
EAN:5702428020343
Approval:EACLLC CDC TYSK
Category:Art. 4, par. 3
Direction:Angleway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428020343 |
| Approval | EACLLC CDC TYSK |
| Category | Art. 4, par. 3 |
| Direction | Angleway |
| Net weight | 0.15 Kg |
| Fluid Group | II |
| Serviceable | No |
| Gross weight | 0.17 Kg |
| Orifice size | 8 |
| Product name | Thermostatic expansion valve |
| Product type | TUBE |
| Refrigerants | R407C |
| Body material | Stainless steel |
| Product Group | Expansion valves |
| Flow direction | Bi-flow |
| Packing format | Industrial pack |
| Parts included | Bulb strap |
| Inlet size [in] | 3/8 IN |
| Outlet size [in] | 1/2 IN |
| Identical product | 068U1938 |
| Superheat setting | Adjustable |
| Connection material | Bi-metal: Steel/copper |
| Product accessories | TXV accessories |
| Product family name | TU/TC |
| Inlet connection type | SOLDER, ODF |
| Pressure equalization | Externally equalized |
| Equalization size [in] | 1/4 IN |
| Outlet connection type | SOLDER, ODF |
| Orifice capacities [TR] | 3.2 tons |
| Orifice capacities [kW] | 11 kW |
| System line application | Liquid line |
| Flow direction indicator | Laser engraved 1-way arrow |
| Capillary tube length [in] | 31 in |
| Capillary tube length [mm] | 800 mm |
| Max. Working Pressure [bar] | 34 bar |
| Quantity per packing format | 45 pc |
| Static Superheat (SS) [°C] | 5 °C |
| Static Superheat (SS) [°F] | 9 °F |
| Equalization connection type | SOLDER, ODF |
| Max. Working Pressure [psig] | 500 psig |
| Rated cap. cond. Range N [SI] | OS=4Ktcond=38 ºCtevap=4.4 ºCtliq=37 ºC |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºFtcond=100 ºFtevap=40 ºFtliq=98 ºF |
Product Description
Thermostatic Expansion Valve, TUBE, R407C
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
