068G6139

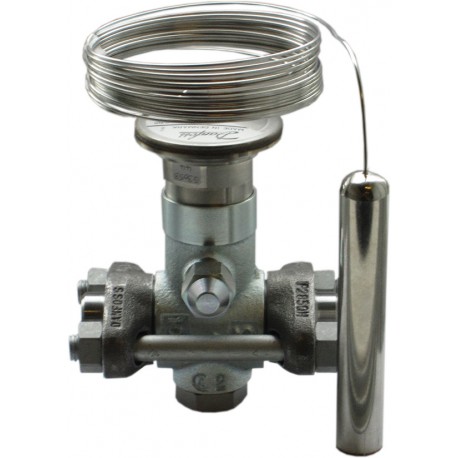

068G6139 DANFOSS REFRIGERATION Thermostatic expansion valve
$0.00USD
4964 in stock
Key Specifications
EAN ():5702422139416
Type ():TEA 20-8
Volume ():6.204 Liter
Approval ():EAC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422139416 |
| Type () | TEA 20-8 |
| Volume () | 6.204 Liter |
| Approval () | EAC |
| Direction () | Straightway |
| Net weight () | 2.286 Kg |
| Fluid Group () | 1 |
| Serviceable () | TXV spare parts |
| Gross weight () | 2.352 Kg |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R717 |
| Body material () | Cast iron GGG40.3 |
| Product group () | Expansion valves |
| Packing format () | Single pack |
| Parts included () | Weld nipple |
| Connection type () | Weld flange |
| SCIP dossier no. () | 28ac93c7-8f38-4a98-acf0-30588207863b |
| Superheat setting () | Adjustable |
| EU RoHS compliance () | No - out of scope |
| Product accessories () | Flanges |
| Product description () | Thermostatic Expans. Valve |
| Connection size [in] () | 1/2 in |
| Pressure equalization () | Externally equalized |
| Equalization connector () | Weld nipple 6.5 mm |
| Flow direction indicator () | Embossed 1-way arrow |
| Max. test pressure [bar] () | 28.5 bar |
| Product Name Description () | Thermostatic expansion valve |
| Rated capacity R717 [TR] () | 8 TR |
| Rated capacity R717 [kW] () | 28 kW |
| Max. test pressure [psig] () | 413 psig |
| SCIP dossier product name () | TEA/TEAT/TEVA |
| Capillary tube length [in] () | 192 in |
| Capillary tube length [mm] () | 5000 mm |
| Rated cap. conditions [SI] () | Subcooling=4Ktcond=32 °Ctevap=15 °C |
| Max. Working Pressure [bar] () | 19 bar |
| Quantity per packing format () | 1 pc |
| Rated cap. conditions [IMP] () | Subcooling=7,2 °Ftcond=89,6 °Ftevap=59 °F |
| Equalization connection type () | M |
| Max. Working Pressure [psig] () | 276 psig |
| Temperature range [°C] [max] () | 30 °C |
| Temperature range [°C] [min] () | -20 °C |
| Temperature range [°F] [max] () | 86 °F |
| Temperature range [°F] [min] () | -4 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
TEA 20-8 Therm. Exp.Valve
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -20 - 30, Pressure equalization: Externally equalized
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
