In Stock Hot Product
068G3261

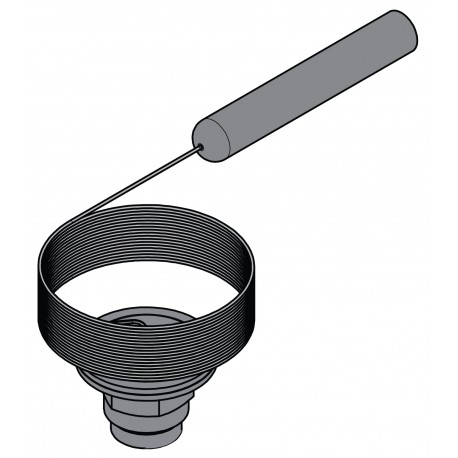

068G3261 DANFOSS REFRIGERATION Element TEAT 20/85
$637.49USD
46 in stock
Key Specifications
EAN ():5702422025412
Type ():Element
Volume ():2.138 Liter
Direction ():Straightway
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422025412 |
| Type () | Element |
| Volume () | 2.138 Liter |
| Direction () | Straightway |
| Net weight () | 0.616 Kg |
| Gross weight () | 0.648 Kg |
| Body material () | Stainless steel |
| Product group () | Expansion valves |
| Packing format () | Multi pack |
| SCIP dossier no. () | 28ac93c7-8f38-4a98-acf0-30588207863b |
| Used for product () | TEAT 20TEAT 85 |
| Pressure equalization () | Internally equalized |
| Product Name Description () | Element for expansion valve |
| SCIP dossier product name () | TEA/TEAT/TEVA |
| Capillary tube length [in] () | 196.8 in |
| Capillary tube length [mm] () | 5000 mm |
| Quantity per packing format () | 9 pc |
| Temperature range [°C] [max] () | 130 °C |
| Temperature range [°C] [min] () | 90 °C |
| Temperature range [°F] [max] () | 266 °F |
| Temperature range [°F] [min] () | 194 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Element for expansion valve, 90 °C - 130 °C, TEAT 85; TEAT 20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Packing format: Multi pack
