068F5231

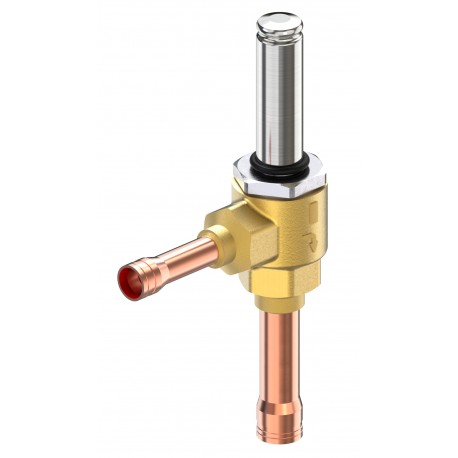

068F5231 DANFOSS REFRIGERATION Electric expansion valve, AKV 10P1
$0.00USD
4621 in stock
Key Specifications
EAN ():5702428674058
Coil ():No
Type ():AKV 10P1
Volume ():0.949 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428674058 |
| Coil () | No |
| Type () | AKV 10P1 |
| Volume () | 0.949 Liter |
| Approval () | C UL US LISTEDEACLLC CDC EURO-TYSK |
| Function () | NC |
| Direction () | Angleway |
| Net weight () | 0.301 Kg |
| Serviceable () | Electric valve spare parts |
| Gross weight () | 0.34 Kg |
| MinODP [bar] () | 0 bar |
| MinODP [psi] () | 0 psi |
| Refrigerants () | R407AR407FR422BR422DR448AR449AR449BR450AR452AR513AR1234yfR1270R290R32R407HR438AR444BR452BR454BR454CR455AR463AR513BR515AR515BR516AR600R600aR134aR22R23R404AR407CR410AR744R1233zd(E)R1234ze(E)R507AR454AR469AR170 |
| MOPD[bar/psi] () | 35 bar/505 psi Coil Dependend |
| Product group () | Expansion valves |
| Packing format () | Industrial pack |
| Inlet size [in] () | 3/8 in |
| Kv value [m³/h] () | 0.009 m³/h |
| Outlet size [in] () | 1/2 in |
| Type designation () | Electric expansion valve |
| Orifice size [mm] () | 0.5 mm |
| Cv value [gal/min] () | 0.01 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Ambient temperature () | -50 - 50 °C |
| Product accessories () | Electric valve accessories |
| Actuator system [mm] () | 13.5 mm |
| Inlet connection type () | Solder, ODF |
| Outlet connection type () | Solder, ODF |
| Manual operation option () | No |
| Product Name Description () | Electric expansion valve |
| Rated capacity R744 [kW] () | 1.3 kW |
| UL approved refrigerants () | R1233zd(E)R134aR22R23R404AR407AR407CR407FR407HR410AR422BR422DR438AR448AR449AR449BR450AR452AR463AR507AR513AR513BR515AR515BR516AR744R454A |
| Max. Working Pressure [bar] () | 90 bar |
| Quantity per packing format () | 16 pc |
| Max. Working Pressure [psig] () | 1305 psig |
| Medium temperature range [°C] [max] () | 60 °C |
| Medium temperature range [°C] [min] () | -50 °C |
| Medium temperature range [°F] [max] () | 140 °F |
| Medium temperature range [°F] [min] () | -58 °F |
| Ambient temperature range [°F] [max] () | 120 °F |
| Ambient temperature range [°F] [min] () | -58 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
