068F5010

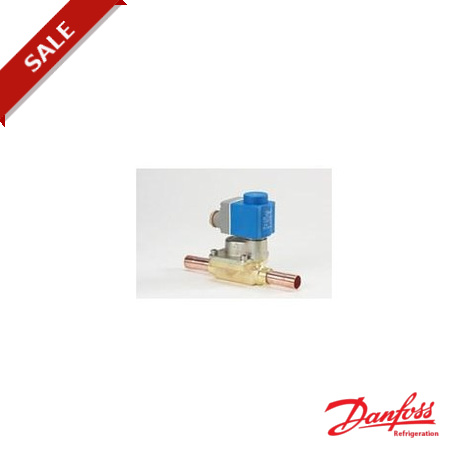

068F5010 DANFOSS REFRIGERATION Electric expansion valve
$0.00USD
4815 in stock
Key Specifications
EAN:5702422186496
Coil:No
Approval:EACLLC CDC TYSK
Function:NC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702422186496 |
| Coil | No |
| Approval | EACLLC CDC TYSK |
| Function | NC |
| Direction | Straightway |
| Net weight | 1.42 Kg |
| Gross weight | 1.53 Kg |
| MinODP [bar] | 0.45 bar |
| MinODP [psi] | 6.52 psi |
| Product name | Electric expansion valve |
| Product type | AKV 15-3 |
| Refrigerants | R134aR22/R407CR23R404A/R507R407AR407FR410AR422BR422DR448AR449AR449BR450AR452AR513AR744 |
| MOPD[bar/psi] | 22 BAR |
| Product Group | Expansion valves |
| Packing format | Single pack |
| Inlet size [in] | 7/8 IN |
| Kv value [m³/h] | 0.63 m3/h |
| Outlet size [in] | 7/8 IN |
| Type designation | Electric expansion valve |
| Orifice size [mm] | 5.6 mm |
| Cv value [gal/min] | 0.728 gal/min |
| MaxOPD[bar] 10W AC | 22 bar |
| MaxOPD[psi] 10W AC | 318 psi |
| Ambient temperature | -40 - 50 °C |
| Product family name | AKV |
| Actuator system [mm] | 13.5 mm |
| Inlet connection type | SOLDER, ODF |
| Outlet connection type | SOLDER, ODF |
| Manual operation option | No |
| Rated capacity R22 [kW] | 63 kW |
| System line application | Liquid feed lineLiquid lineSuction lineWet return line |
| Max. Working Pressure [bar] | 46 bar |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 667 psig |
| Medium temperature range [°C] [Max] | 60 °C |
| Medium temperature range [°C] [Min] | -50 °C |
| Medium temperature range [°F] [Max] | 140 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
Product Description
AKV15-3 Valve ODF-ODF 7/8in Singlep.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
