068F4080

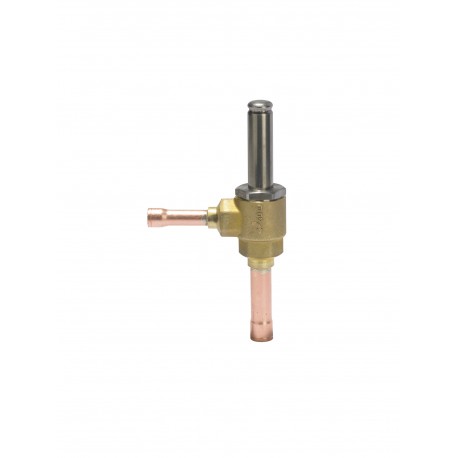

068F4080 DANFOSS REFRIGERATION AKVH10-2 Valve ODF 3/8-1/2in Multi 18
$0.00USD
3814 in stock
Key Specifications
EAN ():5702428257114
Coil ():No
Type ():AKVH 10-2
Volume ():1.111 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428257114 |
| Coil () | No |
| Type () | AKVH 10-2 |
| Volume () | 1.111 Liter |
| Approval () | EACLLC CDC TYSK |
| Function () | NC |
| Direction () | Angleway |
| Net weight () | 0.284 Kilogram |
| Serviceable () | Electric valve spare parts |
| Gross weight () | 0.352 Kilogram |
| MinODP [bar] () | 0 bar |
| MinODP [psi] () | 0 psi |
| Refrigerants () | R134aR22R23R404AR407AR407CR407FR407HR410AR422BR422DR438AR448AR449AR449BR450AR452AR463AR507AR513AR513BR515AR515BR744 |
| MOPD[bar/psi] () | 35 bar |
| Product group () | Expansion valves |
| Packing format () | Multi pack |
| Inlet size [in] () | 3/8 in |
| Kv value [m³/h] () | 0.02 m³/h |
| Outlet size [in] () | 1/2 in |
| SCIP dossier no. () | f6850b72-47a2-4abe-af91-54517615d87e |
| Type designation () | Electric expansion valve |
| Identical product () | 068F4070 |
| Orifice size [mm] () | 0.65 mm |
| Cv value [gal/min] () | 0.02 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| MaxOPD[bar] 10W AC () | 35 bar |
| MaxOPD[psi] 10W AC () | 505 psi |
| UK RoHS compliance () | Out of scope |
| Ambient temperature () | -50 - 50 °C |
| Product accessories () | Electric valve accessories |
| Actuator system [mm] () | 13.5 mm |
| China RoHS compliance () | Out of scope |
| Inlet connection type () | Solder, ODF |
| Outlet connection type () | Solder, ODF |
| Manual operation option () | No |
| EU RoHS exemption clause () | 6(a)6(c) |
| Product Name Description () | Electric expansion valve |
| Rated capacity R744 [kW] () | 2.1 kW |
| SCIP dossier product name () | HEVP AKVH10-0 - 6 |
| Max. Working Pressure [bar] () | 90 bar |
| Quantity per packing format () | 18 pc |
| Max. Working Pressure [psig] () | 1305 psig |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Medium temperature range [°C] [max] () | 60 °C |
| Medium temperature range [°C] [min] () | -50 °C |
| Medium temperature range [°F] [max] () | 140 °F |
| Medium temperature range [°F] [min] () | -58 °F |
| Ambient temperature range [°F] [max] () | 120 °F |
| Ambient temperature range [°F] [min] () | -58 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Electric expansion valve, AKVH 10-2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Kv value [m³/h]: 0.020
