068F1180

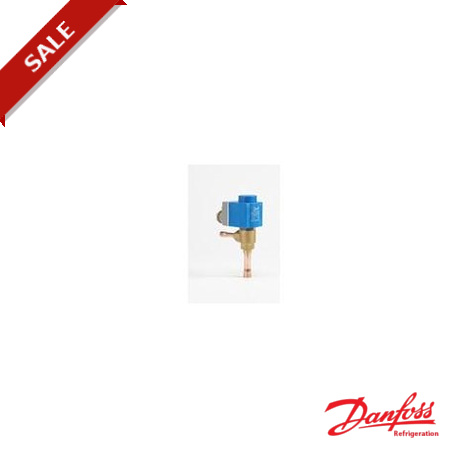

068F1180 DANFOSS REFRIGERATION AKV10-7 Valve ODF-ODF 12-16mm Multi 18
$0.00USD
3835 in stock
Key Specifications
PMT:42.0 bar
Coil:Not
MOPD:18 bar
Soda:R134a
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| PMT | 42.0 bar |
| Coil | Not |
| MOPD | 18 bar |
| Soda | R134a |
| Weight | 0.268 [kg] |
| EAN no. | Five trillion seven hundred two billion four hundred twenty two million eighty seven thousand one hundred ninety nine |
| Approval | EAC, LLC CDC TYSK |
| Cv value | 0,242 gpm US |
| Function | N C |
| Kv value | 0,209 m3/h |
| ODP min. | 0,000 bar |
| OPD min. | 0,000 psi |
| Direction | Via angular |
| Enter Code | AKV 10-7 |
| Input type | SOLDER, ODF |
| Oper. Man. | Not |
| Prod. name | Expansion valve electric |
| Desig. type | Expansion valve electric |
| Output type | SOLDER, ODF |
| Prod. Group | Expansion valves |
| Qnt. package | 18 pc |
| Temp. average | -50 - 60 °C |
| Actuator system | 13.5 mm |
| Class. cap. R22 | 16,00 kW |
| Max. OPD, 10W AC | 18 bar |
| Size of the input | 12,00 mm |
| Temp. environment | -50 - 50 °C |
| Size of the output | 16,00 mm |
| The size of the hole | 2,30 mm |
| The format of the package | Multi pack |
| Range of temp. environment | -58 - 120 °F |
