In Stock Hot Product
068F1171

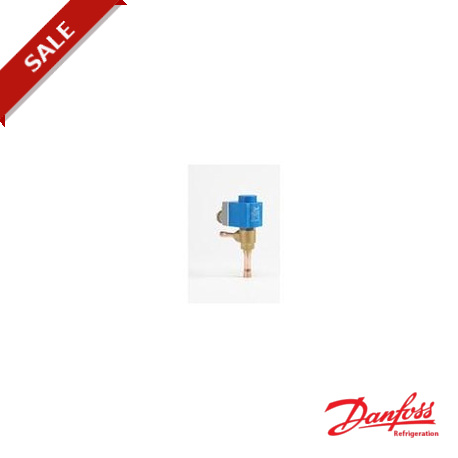

068F1171 DANFOSS REFRIGERATION AKV10-4 Valve ODF-ODF 10-12mm Multi 18
$0.00USD
3159 in stock
Key Specifications
MWP:52,0 bar
Coil:No
MOPD:18 bar
Soda:R134a
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| MWP | 52,0 bar |
| Coil | No |
| MOPD | 18 bar |
| Soda | R134a |
| Weight | 0.274 Kg |
| Min. DP | 0,000 psi |
| Approval | EAC, LLC CDC TYSK |
| Cv value | 0,053 gpm US |
| Function | N C |
| Kv-Value | 0,046 m3/h |
| Min. ODP | 0,000 bar |
| Direction | Angleway |
| Prod. name | Expansion Valve Electric |
| Outlet size | 12,00 mm |
| Outlet type | SOLDER ODF |
| Prod. Group | Expansion valves |
| Man. Operat. | No |
| Average temp. | -50 - 60 °C |
| EAN does not. | Five trillion seven hundred two billion four hundred twenty two million eighty seven thousand ninety |
| Type The Code | AKV 10-4 |
| Type of entry | SOLDER ODF |
| Rated cap. R22 | 4,00 kW |
| Actuator system | 13.5 mm |
| Max. DP, 10W AC | 18 bar |
| Environment temp. | -50 - 50 °C |
| Size of the input | 10,00 mm |
| The type of design. | Expansion Valve Electric |
| The size of the hole | 1.05 mm |
| Environment temp. range | -58 - 120 °F |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
