In Stock Hot Product
068-2018

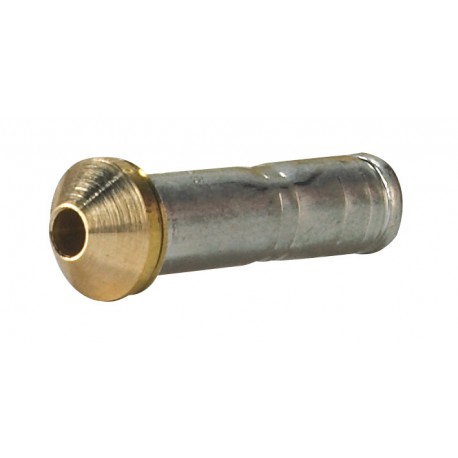

068-2018 DANFOSS REFRIGERATION Orifice for expansion valve
$0.00USD
3584 in stock
Key Specifications
EAN ():5702428025737
Type ():ORF
Design ():SAE flare only
Volume ():0.02 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428025737 |
| Type () | ORF |
| Design () | SAE flare only |
| Volume () | 0.02 Liter |
| Approval () | EACLLC CDC TYSK |
| Net weight () | 0.013 Kg |
| Fluid Group () | 1 |
| Serviceable () | No |
| Gross weight () | 0.014 Kg |
| Orifice size () | 0x |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R22/R407CR23R236faR407CR134a/R513AR407AR448AR449AR452AR404A/R507A |
| Product group () | Expansion valves |
| Packing format () | Industrial pack |
| SCIP dossier no. () | 6450ee16-252d-49df-8f77-4136a47bb857 |
| Used for product () | T 2TE 2 |
| Identical product () | 068-2002 |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | T2/TE2 |
| Product accessories () | TXV accessories |
| Product Name Description () | Orifice for expansion valve |
| SCIP dossier product name () | T2/TE2 |
| Quantity per packing format () | 45 pc |
| Rated cap. R22, Range B [TR] () | 0.25 TR |
| Rated cap. R22, Range B [kW] () | 0.87 kW |
| Rated cap. R22, Range N [TR] () | 0.25 TR |
| Rated cap. R22, Range N [kW] () | 0.9 kW |
| Rated cap. R507, Range B [TR] () | 0.18 TR |
| Rated cap. R507, Range B [kW] () | 0.62 kW |
| Rated cap. R507, Range N [TR] () | 0.18 TR |
| Rated cap. R507, Range N [kW] () | 0.64 kW |
| Rated cap. cond. Range N [SI] () | tcond=38 ºCtevap=4.4 ºCtliq=37 ºC |
| Temperature range [°C] [max] () | 10 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 50 °F |
| Temperature range [°F] [min] () | -40 °F |
| Rated cap. R134a, Range N [TR] () | 0.19 TR |
| Rated cap. R134a, Range N [kW] () | 0.68 kW |
| Rated cap. R404A, Range B [TR] () | 0.18 TR |
| Rated cap. R404A, Range B [kW] () | 0.62 kW |
| Rated cap. R404A, Range N [TR] () | 0.18 TR |
| Rated cap. R404A, Range N [kW] () | 0.64 kW |
| Rated cap. R407C, Range N [TR] () | 0.26 TR |
| Rated cap. R407C, Range N [kW] () | 0.92 kW |
| Rated cap. R513A, Range N [TR] () | 0.16 TR |
| Rated cap. R513A, Range N [kW] () | 0.58 kW |
| Rated cap. cond. Range N [IMP] () | tcond=100 ºFtevap=40 ºFtliq=98 ºF |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Orifice for expansion valve, ORF, R407C; R236fa; R452A; R407A; R134a/R513A; R404A/R507A; R448A; R23; R22/R407C; R449A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -40 - 10
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
