067N2005

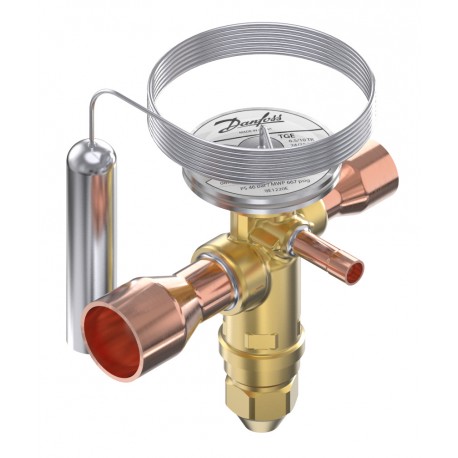

067N2005 DANFOSS REFRIGERATION Thermostatic expansion valve, TGE
$0.00USD
3432 in stock
Key Specifications
EAN ():5702428138604
Type ():TGE
Volume ():1.644 Liter
Approval ():C UL US LISTEDEACLLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428138604 |
| Type () | TGE |
| Volume () | 1.644 Liter |
| Approval () | C UL US LISTEDEACLLC CDC TYSK |
| Direction () | Straightway |
| Net weight () | 0.382 Kg |
| Serviceable () | No |
| Gross weight () | 0.467 Kg |
| Orifice size () | 6 |
| Refrigerants () | R22/R407C |
| Body material () | Brass |
| Product group () | Expansion valves |
| Flow direction () | Bi-flow |
| Packing format () | Multi pack |
| Parts included () | Bulb strap |
| Inlet size [in] () | 5/8 in |
| MOP Point [°C] () | 15 °C |
| MOP Point [°F] () | 60 °F |
| MOP Point [psig] () | MOP 100 |
| Outlet size [in] () | 7/8 in |
| SCIP dossier no. () | 28ac93c7-8f38-4a98-acf0-30588207863b |
| Identical product () | 067N2025 |
| Superheat setting () | Adjustable |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Copper |
| Product accessories () | TXV accessories |
| Inlet connection type () | Solder, ODF |
| Pressure equalization () | Externally equalized |
| Balanced port [Yes/No] () | Yes |
| Equalization size [in] () | 1/4 in |
| Outlet connection type () | Solder, ODF |
| Orifice capacities [TR] () | 6 TR |
| Orifice capacities [kW] () | 20 kW |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Thermostatic expansion valve |
| UL approved refrigerants () | R22R407C |
| SCIP dossier product name () | TEA/TEAT/TEVA |
| Capillary tube length [in] () | 59 in |
| Capillary tube length [mm] () | 1500 mm |
| Max. Working Pressure [bar] () | 49 bar |
| Quantity per packing format () | 12 pc |
| Static Superheat (SS) [°C] () | 4 °C |
| Static Superheat (SS) [°F] () | 7.2 °F |
| Equalization connection type () | Solder, ODF |
| Max. Working Pressure [psig] () | 711 psig |
| Rated cap. cond. Range N [SI] () | tcond=38 °Ctevap=4.4 °Ctliq=37 °C |
| Temperature range [°C] [max] () | 10 °C |
| Temperature range [°C] [min] () | -25 °C |
| Temperature range [°F] [max] () | 50 °F |
| Temperature range [°F] [min] () | -15 °F |
| Element temperature max. [°C] () | 110 °C |
| Element temperature max. [°F] () | 230 °F |
| Rated cap. cond. Range N [IMP] () | tcond=100 °Ftevap=40 °Ftliq=98 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Thermostatic expansion valve, TGE, R22/R407C
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -25 - 10, MOP Point [°C]: 15, Orifice capacities [kW]: 20.00, Orifice capacities [TR]: 6.00, Pressure equalization: Externally equalized
