In Stock Hot Product
067G4002

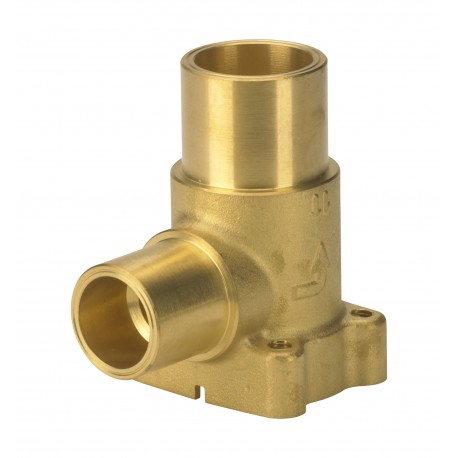

067G4002 DANFOSS REFRIGERATION Valve body for expansion valve
$0.00USD
3302 in stock
Key Specifications
EAN ():5702428322362
Type ():TEH
Volume ():0.704 Liter
Approval ():LLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428322362 |
| Type () | TEH |
| Volume () | 0.704 Liter |
| Approval () | LLC CDC TYSK |
| Direction () | Angleway |
| Net weight () | 0.51 Kilogram |
| Serviceable () | TXV spare parts |
| Gross weight () | 0.56 Kilogram |
| Body material () | Brass |
| Product group () | Expansion valves |
| Flow direction () | Bi-flow |
| Packing format () | Multi pack |
| Parts included () | ScrewsWashers |
| Inlet size [mm] () | 28 mm |
| Outlet size [mm] () | 35 mm |
| SCIP dossier no. () | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
| Used for product () | TE 55TQ 55 |
| EU RoHS compliance () | Out of scope |
| Parts Program name () | TE 55TQ 55 |
| UK RoHS compliance () | Out of scope |
| Connection material () | Brass |
| Product accessories () | TXV accessories |
| China RoHS compliance () | Out of scope |
| Inlet connection type () | Solder, ODM |
| Balanced port [Yes/No] () | Yes |
| Outlet connection type () | Solder, ODM |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Valve body for expansion valve |
| SCIP dossier product name () | TE |
| Quantity per packing format () | 20 pc |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
TE 55 Valve Body SA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Direction: Angleway, Used for product: TE 55; TQ 55, Inlet connection type: Solder, ODM, Inlet size [mm]: 28.00, Outlet connection type: Solder, ODM, Outlet size [mm]: 35.00
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
