In Stock Hot Product
067B4016

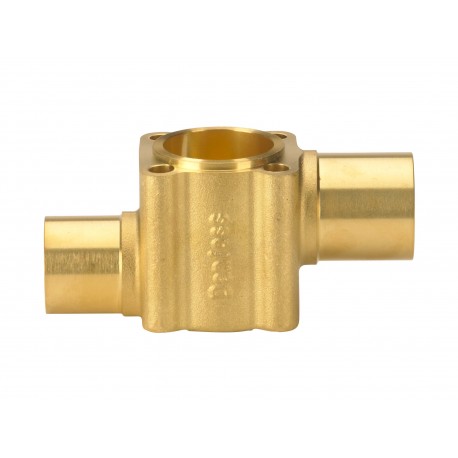

067B4016 DANFOSS REFRIGERATION Valve body for expansion valve
$0.00USD
4670 in stock
Key Specifications
EAN ():5702428094047
Type ():TEH
Volume ():0.323 Liter
Approval ():LLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428094047 |
| Type () | TEH |
| Volume () | 0.323 Liter |
| Approval () | LLC CDC TYSK |
| Direction () | Straightway |
| Net weight () | 0.554 Kg |
| Serviceable () | TXV spare parts |
| Gross weight () | 0.57 Kg |
| Body material () | Brass |
| Product group () | Expansion valves |
| Flow direction () | Single-flow |
| Packing format () | Multi pack |
| Parts included () | ScrewsWashers |
| Inlet size [mm] () | 22 mm |
| Outlet size [mm] () | 28 mm |
| SCIP dossier no. () | 3e6257ae-4c71-440b-b37c-a7fc7f28ad0e |
| Used for product () | TE 12TE 20TQ 20TQ 12 |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | TE 12TE 20TQ 12TQ 20 |
| Connection material () | Brass |
| Product accessories () | TXV accessories |
| Inlet connection type () | Solder, ODF |
| Balanced port [Yes/No] () | No |
| Outlet connection type () | Solder, ODM |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Valve body for expansion valve |
| SCIP dossier product name () | TD/TDE1 |
| Quantity per packing format () | 32 pc |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
TE 12/20 & TQ12/20 Valve Body SS
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Direction: Straightway, Used for product: TQ 20; TQ 12; TE 12; TE 20, Inlet connection type: Solder, ODF, Inlet size [mm]: 22.00, Outlet connection type: Solder, ODM, Outlet size [mm]: 28.00
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
