067B3287

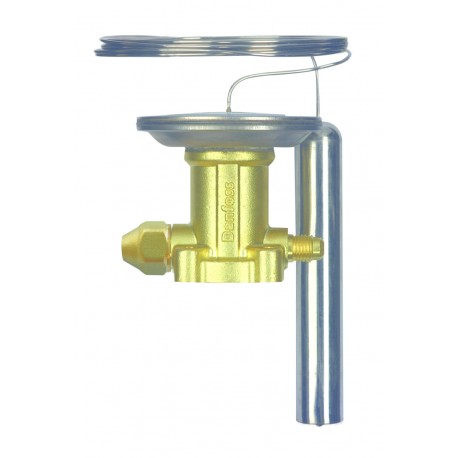

067B3287 DANFOSS REFRIGERATION Element for expansion valve
$0.00USD
4105 in stock
Key Specifications
EAN ():5702428148344
Type ():TE 20
Volume ():2.498 Liter
Approval ():EACLLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428148344 |
| Type () | TE 20 |
| Volume () | 2.498 Liter |
| Approval () | EACLLC CDC TYSK |
| Net weight () | 0.63 Kg |
| Gross weight () | 0.796 Kg |
| Refrigerants () | R22/R407C |
| Body material () | Brass |
| Product group () | Expansion valves |
| Packing format () | Multi pack |
| MOP Point [°C] () | -20 °C |
| MOP Point [°F] () | -5 °F |
| MOP Point [psig] () | MOP 20 |
| SCIP dossier no. () | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
| Type designation () | Element |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | TE 20 |
| Pressure equalization () | Externally equalized |
| Equalization size [in] () | 1/4 in |
| Product Name Description () | Element for expansion valve |
| SCIP dossier product name () | TE |
| Capillary tube length [in] () | 197 in |
| Capillary tube length [mm] () | 5000 mm |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 9 pc |
| Equalization connection type () | Flare |
| Max. Working Pressure [psig] () | 400 psig |
| Temperature range [°C] [max] () | -25 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | -15 °F |
| Temperature range [°F] [min] () | -75 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
TE 20 Element BMOP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -60 - -25, MOP Point [°C]: -20, Pressure equalization: Externally equalized
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
