In Stock Hot Product
067B3238

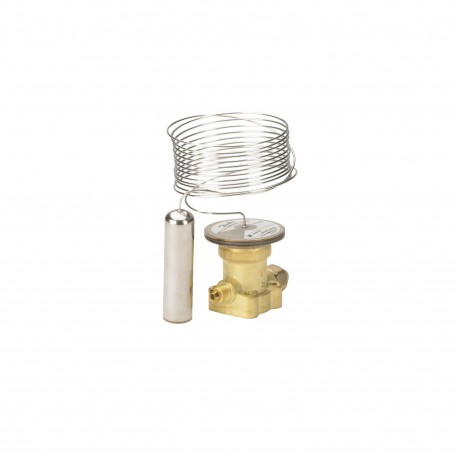

067B3238 DANFOSS REFRIGERATION Element for expansion valve
$0.00USD
3149 in stock
Key Specifications
EAN:5702428148405
Approval:EACLLC CDC TYSK
Net weight:0.47 Kg
Gross weight:0.54 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428148405 |
| Approval | EACLLC CDC TYSK |
| Net weight | 0.47 Kg |
| Gross weight | 0.54 Kg |
| Product name | Element for expansion valve |
| Product type | TE 5 |
| Refrigerants | R404A/R507 |
| Body material | Brass |
| Product Group | Expansion valves |
| Packing format | Multi pack |
| MOP Point [°C] | 15 °C |
| MOP Point [°F] | 60 °F |
| MOP Point [psig] | MOP 120 |
| Type designation | Element |
| Parts Program name | TE 5 |
| Product description | Thermostatic Expans. Valve |
| Product family name | TE 5 - 55 |
| Pressure equalization | Externally equalized |
| Equalization size [in] | 1/4 IN |
| System line application | Liquid line |
| Capillary tube length [in] | 118 in |
| Capillary tube length [mm] | 3000 mm |
| Max. Working Pressure [bar] | 28 bar |
| Quantity per packing format | 12 pc |
| Equalization connection type | FLARE |
| Max. Working Pressure [psig] | 400 psig |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
Product Description
TE 5 Element NMOP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
