065Z0416

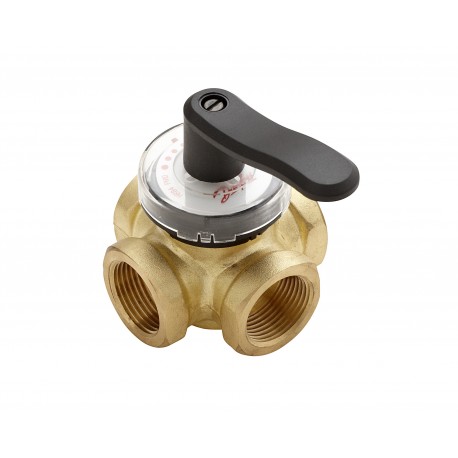

065Z0416 DANFOSS HEATING HRB 4 PN10 40/25 rotary 4-way Rp1 1/2
$0.00USD
4209 in stock
Key Specifications
EAN ():5710104033747
Type ():HRB 4
Volume ():2.144 Liter
Net weight ():1.9 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104033747 |
| Type () | HRB 4 |
| Volume () | 2.144 Liter |
| Net weight () | 1.9 Kilogram |
| Valve size () | DN 40 |
| Application () | Heating |
| Description () | HRB 4 PN10 40/25 rotary 4-way Rp1 1/2 |
| Gross weight () | 1.945 Kilogram |
| Diameter [mm] () | 40 mm |
| Product group () | Motorized control valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 10 |
| Connection size () | Rp 1 1/2 |
| Number of ports () | 4 |
| Connection types () | Internal thread |
| Mounting version () | Flow |
| SCIP dossier no. () | b522cde8-91be-41f7-a332-895ff80167a5 |
| Permissible media () | District heating/cooling circulation water |
| Kvs values [m³/h] () | 25 m³/h |
| Medium alternative () | Glycolic water up to 50% |
| PN alternative VSP () | 6 |
| UK RoHS compliance () | Out of scope |
| Flow characteristic () | S characteristic |
| Slide shoe material () | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve body material () | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone material () | DZR brass CuZn36Pb2AS (CW 602N) |
| China RoHS compliance () | Out of scope |
| Operating torque [Nm] () | 5 N-m |
| Pressure nominal [bar] () | 10 bar |
| SCIP dossier product name () | HRB HRE HFE |
| Media temperature [°C] [Max] () | 110 °C |
| Media temperature [°C] [Min] () | 2 °C |
| Stuffing box sealing material () | EPDM |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Leakage through port max. [% Kvs] () | 1.0 |
| In scope of WEEE and contain batteries () | No |
| Closing differential pressure (mixing) [bar] [Max] () | 1 bar |
| Closing differential pressure (diverting) [bar] [Max] () | 2 bar |
Product Description
HRB 4, PN 10, DN 40, 25.00 m³/h, Rp 1 1/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
HRB 4 PN10 40/25 rotary 4-way Rp1 1/2
