065Z0406

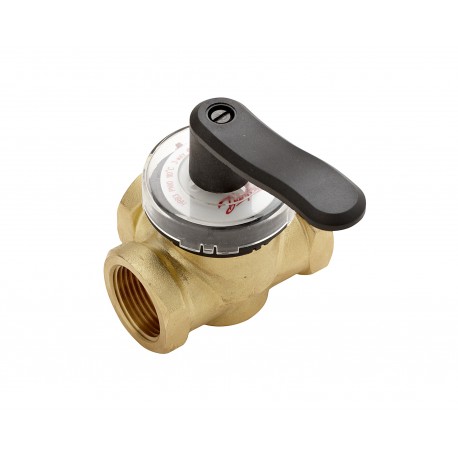

065Z0406 DANFOSS HEATING HRB 3 PN10 25/6.3 rotary 3-way Rp1
$0.00USD
3960 in stock
Key Specifications
EAN ():5710104033648
Type ():HRB 3
Volume ():1.186 Liter
Net weight ():0.861 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104033648 |
| Type () | HRB 3 |
| Volume () | 1.186 Liter |
| Net weight () | 0.861 Kilogram |
| Application () | Heating |
| Description () | HRB 3 PN10 25/6.3 rotary 3-way Rp1 |
| Gross weight () | 0.999 Kilogram |
| Diameter [mm] () | 25 mm |
| Product group () | Other valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Connection size () | Rp 1 |
| Number of ports () | 3 |
| Connection types () | Internal thread |
| Mounting version () | Flow |
| SCIP dossier no. () | b522cde8-91be-41f7-a332-895ff80167a5 |
| Permissible media () | District heating/cooling circulation water |
| Kvs values [m³/h] () | 6.3 m³/h |
| Medium alternative () | Glycolic water up to 50% |
| PN alternative VSP () | 6 |
| UK RoHS compliance () | Out of scope |
| Flow characteristic () | S characteristic |
| Slide shoe material () | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve body material () | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone material () | DZR brass CuZn36Pb2AS (CW 602N) |
| China RoHS compliance () | Out of scope |
| Operating torque [Nm] () | 5 N-m |
| Pressure nominal [bar] () | 10 bar |
| SCIP dossier product name () | HRB HRE HFE |
| Media temperature [°C] [Max] () | 110 °C |
| Media temperature [°C] [Min] () | 2 °C |
| Stuffing box sealing material () | EPDM |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Leakage through port max. [% Kvs] () | Diverting: 0.02Mixing: 0.05 |
| In scope of WEEE and contain batteries () | No |
| Closing differential pressure (mixing) [bar] [Max] () | 1 bar |
| Closing differential pressure (diverting) [bar] [Max] () | 2 bar |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
HRB 3 PN10 25/6.3 rotary 3-way Rp1
