065Z0281

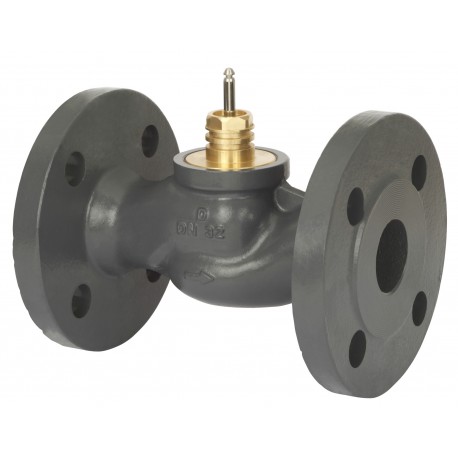

065Z0281 DANFOSS HEATING VF 2 PN16 65/63 2-way seated flange
$0.00USD
4832 in stock
Key Specifications
EAN ():5702421560181
Type ():VF 2
Volume ():82.733 Liter
Function ():Pressure relief
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421560181 |
| Type () | VF 2 |
| Volume () | 82.733 Liter |
| Function () | Pressure relief |
| Net weight () | 16 Kilogram |
| Application () | Heating and cooling |
| Description () | VF 2 PN16 65/63 2-way seated flange |
| Stroke [mm] () | 20 mm |
| Gross weight () | 21.85 Kilogram |
| Control ratio () | 100:1 |
| Diameter [mm] () | 65 mm |
| Product group () | Other valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Number of ports () | 2 |
| Connection types () | Flange |
| Mounting version () | Flow |
| SCIP dossier no. () | 4faa3ae1-f1b1-4990-998a-23bd0bd83fc9 |
| Cavitation factor () | 0.4 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 63 m³/h |
| Medium alternative () | Glycolic water up to 50% |
| PN alternative VSP () | 10 |
| UK RoHS compliance () | Out of scope |
| Flow characteristic () | Equal percentage |
| Valve body material () | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material () | Brass |
| Valve stem material () | Stainless steel |
| China RoHS compliance () | Out of scope |
| Pressure nominal [bar] () | 16 bar |
| SCIP dossier product name () | VF 2 PN16 DN65-80 |
| Application alternative VSP () | District heating |
| Media temperature [°C] [Max] () | 130 °C |
| Media temperature [°C] [Min] () | -10 °C |
| Stuffing box sealing material () | EPDM |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Leakage through port max. [% Kvs] () | bubble tight design |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 2.5 bar |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VF 2 PN16 65/63 2-way seated flange
