In Stock Hot Product
065N1173

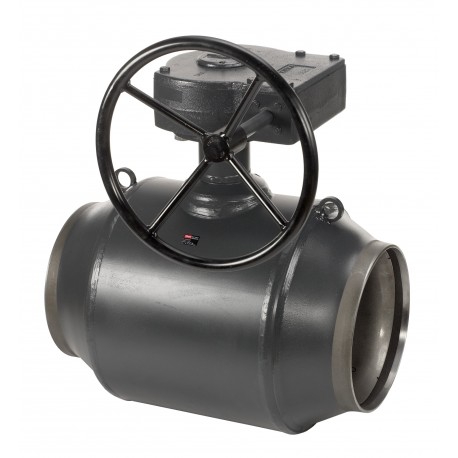

065N1173 DANFOSS HEATING JIP WW full bore ball valve DN350 PN25wg
$0.00USD
4898 in stock
Key Specifications
EAN ():5710104511900
Type ():JIP-WW, FB, Worm gear
Volume ():1663.744 Liter
Function ():On/off
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104511900 |
| Type () | JIP-WW, FB, Worm gear |
| Volume () | 1663.744 Liter |
| Function () | On/off |
| Net weight () | 644 Kilogram |
| Valve size () | DN 350 |
| Valve type () | Full Bore |
| Description () | JIP-WW DN350 FB PN25 WG |
| Gross weight () | 692 Kilogram |
| Product group () | Ball valves |
| Media pH [Max] () | 10 |
| Pressure class () | PN 25 |
| Connection types () | Welded |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Valve body material () | Weldable steel #20 or similar CE PED approved material |
| China RoHS compliance () | Out of scope |
| Media temperature [°C] [Max] () | 180 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Ball valves, JIP-WW, FB, Worm gear, Full Bore, PN 25, DN 350, Welded
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
JIP-WW DN350 FB PN25 WG
