065N0367

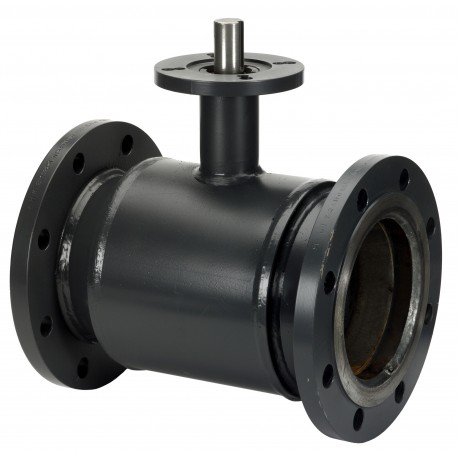

065N0367 DANFOSS HEATING JIP-FF DN300 PN25 GF L850
$0.00USD
3057 in stock
Key Specifications
EAN ():5702421650684
Type ():JIP-FF, RB, Gear flange
Volume ():870.912 Liter
Function ():On/off
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421650684 |
| Type () | JIP-FF, RB, Gear flange |
| Volume () | 870.912 Liter |
| Function () | On/off |
| Net weight () | 245 Kilogram |
| Valve size () | DN 300 |
| Valve type () | Reduced Bore |
| Application () | Heating and cooling |
| Description () | JIP-FF DN300 PN25 GF L850 |
| Length [mm] () | 850 mm |
| Gross weight () | 279 Kilogram |
| Body material () | Weldable steel #20 or similar CE PED approved material |
| Product group () | Ball valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Operation type () | Gear Flange |
| Pressure class () | PN 25 |
| Number of ports () | 2 |
| Connection types () | Flange |
| Flanges material () | EN1092-Weldable steel #20 or similar CE PED approved material |
| Gear flange type () | F16 |
| Approval standard () | EN 12266 part 1 P10-P11-P12 & part 2 F20PED Directive 97/23/EEC Modul H1 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 9100 m³/h |
| Medium alternative () | Glycolic water up to 50% |
| UK RoHS compliance () | Out of scope |
| Rotation angle [°] () | 90 ° |
| Valve ball material () | Stainless steel |
| Valve body material () | Weldable steel #20 or similar CE PED approved material |
| Valve stem material () | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Leakage rate [% Kvs] () | Leakage rate A |
| Mounting orientation () | All |
| China RoHS compliance () | Out of scope |
| Stem sealing material () | PTFE/Graphite |
| Welding ends material () | Weldable steel #20 or similar CE PED approved material |
| Height to top of stem [mm] () | 669 mm |
| Cone /seat sealing material () | PTFE+C |
| Media temperature [°C] [Max] () | 180 °C |
| Media temperature [°C] [Min] () | 0 °C |
| Ambient temperature [°C] [min] () | -40 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Storage temperature [°C] [Min] () | -40 °C |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 25 bar |
Product Description
Ball valves, JIP-FF, RB, Gear flange, Reduced Bore, PN 25, DN 300, Flange
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
JIP-FF DN300 PN25 GF L850
