In Stock Hot Product
065N0006

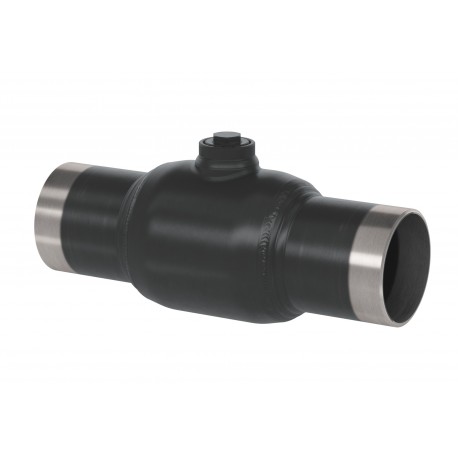

065N0006 DANFOSS HEATING JIP-WW BR DN65 PN25
$0.00USD
4463 in stock
Key Specifications
EAN ():5710104514079
Type ():JIP-WW, Branching
Volume ():4.063 Liter
Function ():On/off
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104514079 |
| Type () | JIP-WW, Branching |
| Volume () | 4.063 Liter |
| Function () | On/off |
| Net weight () | 3.22 Kilogram |
| Valve size () | DN 65 |
| Valve type () | Reduced Bore |
| Gross weight () | 3.257 Kilogram |
| Product group () | Ball valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 25 |
| Connection types () | Welded |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Valve body material () | Weldable steel #20 or similar CE PED approved material |
| China RoHS compliance () | Out of scope |
| Media temperature [°C] [Max] () | 180 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Ball valves, JIP-WW, Branching, Reduced Bore, PN 25, DN 65, Welded
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
