065B2019

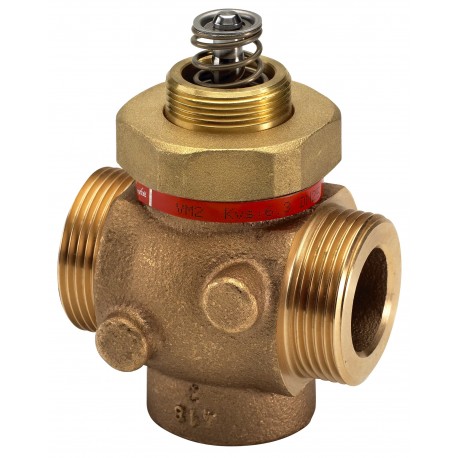

065B2019 DANFOSS HEATING VM 2 PN25 40/16 2-way seated ext. thr
$0.00USD
4819 in stock
Key Specifications
EAN ():5702421509005
Type ():VM 2
Volume ():5.034 Liter
Function ():Control valve
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421509005 |
| Type () | VM 2 |
| Volume () | 5.034 Liter |
| Function () | Control valve |
| Net weight () | 2.323 Kilogram |
| Valve size () | DN 40 |
| Application () | District Heating |
| Description () | VM 2 PN25 40/16 2-way seated ext. thr |
| Stroke [mm] () | 10 mm |
| Gross weight () | 2.621 Kilogram |
| Control ratio () | 50:1 |
| Diameter [mm] () | 40 mm |
| Product group () | Motorized control valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 25 |
| Connection size () | G 2 A |
| Number of ports () | 2 |
| Connection types () | External Thread |
| Mounting version () | Free |
| SCIP dossier no. () | eeef3c38-a53e-46a7-b84e-0271238cafdf |
| Spindle position () | Normally open |
| Cavitation factor () | 0.5 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 16 m³/h |
| Medium alternative () | Glycolic water up to 30% |
| PN alternative VSP () | 16 |
| UK RoHS compliance () | Out of scope |
| Flow characteristic () | Split |
| Valve body material () | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material () | Stainless steel |
| Valve seat material () | Stainless steel |
| Valve stem material () | Stainless steel |
| Cavitation factor 25% () | 0.58 |
| Cavitation factor 50% () | 0.52 |
| Cavitation factor 75% () | 0.5 |
| China RoHS compliance () | Out of scope |
| Cavitation factor 100% () | 0.34 |
| Pressure nominal [bar] () | 25 bar |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | VM2 (3) |
| Application alternative VSP () | Heating |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| Stuffing box sealing material () | EPDM |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Leakage through port max. [% Kvs] () | 0.05 |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 16 bar |
Product Description
VM 2, PN 25, DN 40, 16.00 m³/h, G 2 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VM 2 PN25 40/16 2-way seated ext. thr
