065B0791

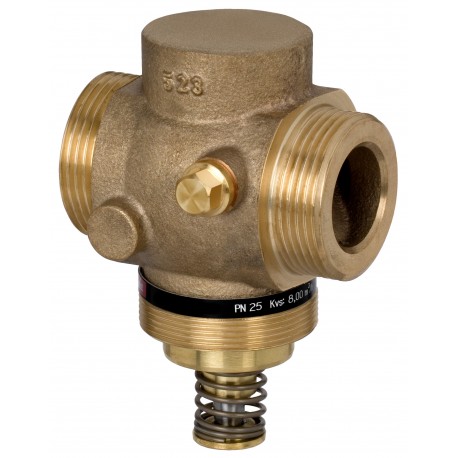

065B0791 DANFOSS HEATING VGU PN25 15/4 2-way thread flow/ret
$0.00USD
4070 in stock
Key Specifications
EAN ():5702421543733
Type ():VGU
Volume ():0.825 Liter
Function ():Control valve
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421543733 |
| Type () | VGU |
| Volume () | 0.825 Liter |
| Function () | Control valve |
| Net weight () | 0.78 Kilogram |
| Valve size () | DN 15 |
| Application () | Cooling |
| Description () | VGU PN25 15/4 2-way thread flow/ret |
| Stroke [mm] () | 5 mm |
| Gross weight () | 0.78 Kilogram |
| Diameter [mm] () | 15 mm |
| Product group () | Motorized control valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 25 |
| Connection size () | G 3/4 A |
| Number of ports () | 2 |
| Connection types () | External Thread |
| Mounting version () | Free |
| Sealing material () | EPDM |
| Spindle position () | Normally closed |
| Cavitation factor () | 0.6 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 4 m³/h |
| Medium alternative () | Glycolic water up to 30% |
| PN alternative VSP () | 16 |
| UK RoHS compliance () | Out of scope |
| Connection standard () | ISO 228/1 |
| Flow characteristic () | Approx. linear |
| Valve body material () | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material () | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve seat material () | Stainless steel, mat. No. 1.4571 |
| China RoHS compliance () | Out of scope |
| Pressure nominal [bar] () | 25 bar |
| Pressure relieve system () | Piston |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Leakage through port max. [% Kvs] () | 0.05 |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 20 bar |
Product Description
VGU, PN 25, DN 15, 4.00 m³/h, G 3/4 A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VGU PN25 15/4 2-way thread flow/ret
