065B0785

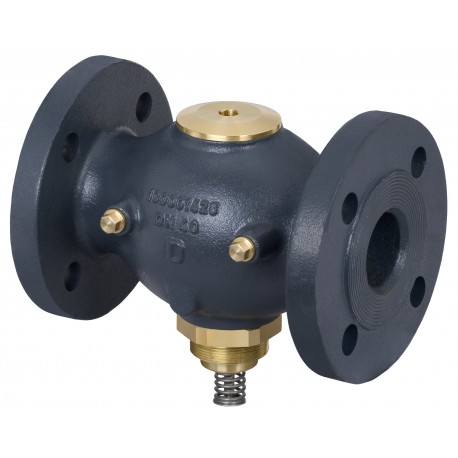

065B0785 DANFOSS HEATING VGF PN25 50/25 2-way flange flow
$0.00USD
3567 in stock
Key Specifications
EAN ():5702421543672
Type ():VGF
Volume ():14.823 Liter
Function ():Control valve
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421543672 |
| Type () | VGF |
| Volume () | 14.823 Liter |
| Function () | Control valve |
| Net weight () | 11.555 Kilogram |
| Valve size () | DN 50 |
| Application () | District Heating |
| Description () | VGF PN25 50/25 2-way flange flow |
| Stroke [mm] () | 10 mm |
| Gross weight () | 11.581 Kilogram |
| Diameter [mm] () | 50 mm |
| Product group () | Motorized control valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 25 |
| Connection size () | 50 |
| Number of ports () | 2 |
| Connection types () | Flange |
| Mounting version () | Free |
| Spindle position () | Normally open |
| Cavitation factor () | 0.6 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 25 m³/h |
| Medium alternative () | Glycolic water up to 30% |
| PN alternative VSP () | 16 |
| UK RoHS compliance () | Out of scope |
| Connection standard () | EN 1092-2 |
| Flow characteristic () | Approx. linear |
| Valve body material () | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material () | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve seat material () | Stainless steel, mat. No. 1.4571 |
| China RoHS compliance () | Out of scope |
| Pressure nominal [bar] () | 25 bar |
| Pressure relieve system () | Piston |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | 2 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Leakage through port max. [% Kvs] () | 0.05 |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 16 bar |
Product Description
VGF, PN 25, DN 50, 25.00 m³/h, Flange
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VGF PN25 50/25 2-way flange flow
